The Story
Ā

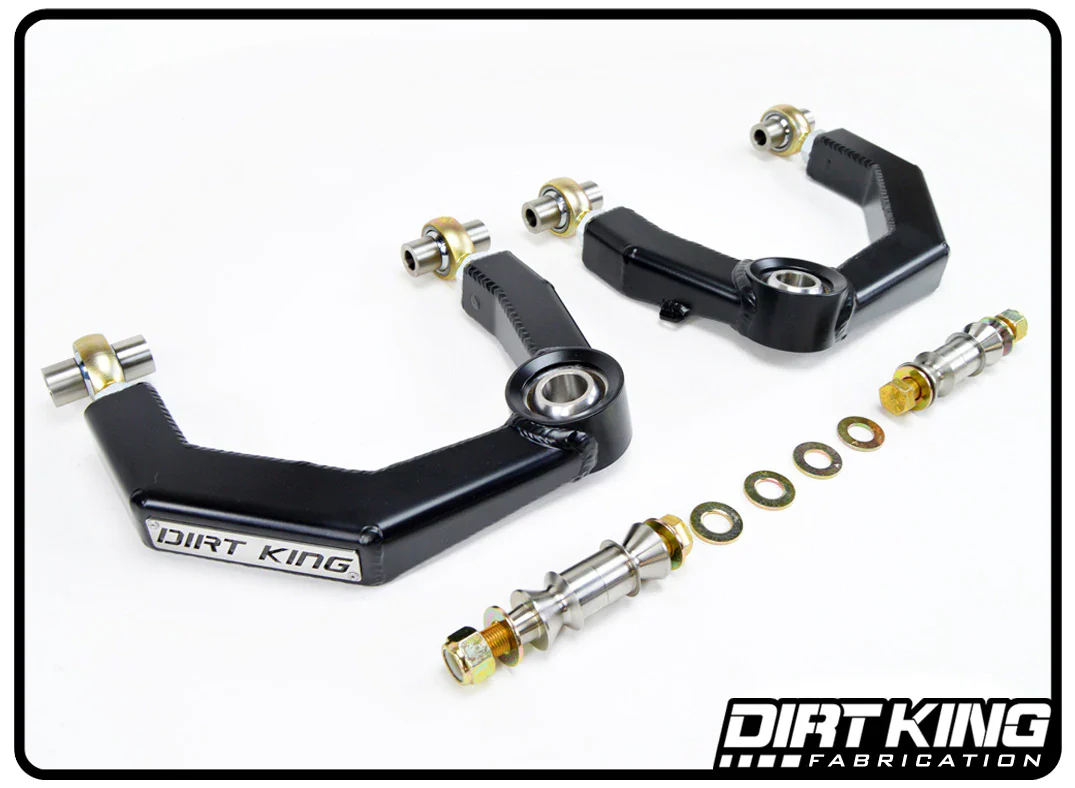

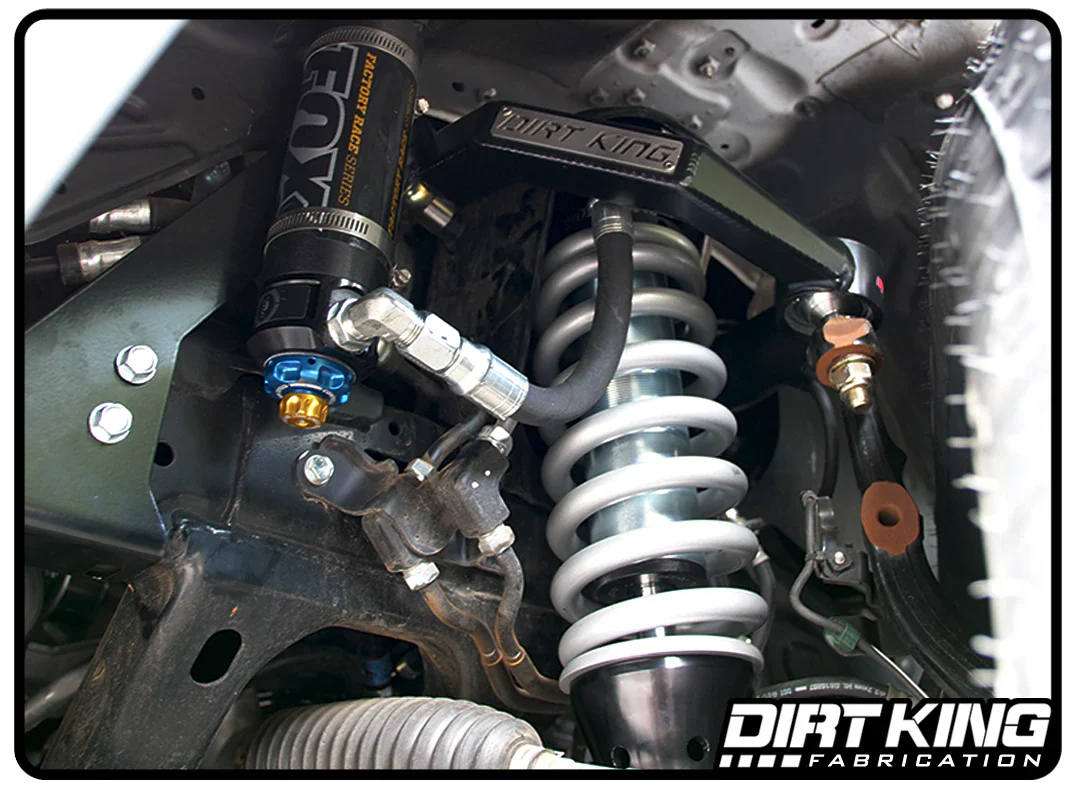

There are multiple issues when lifting your vehicle with stock upper control arms. Both the geometry and strength are compromised due to over articulating the stock arms. We solved these problems by designing our upper control arms with increased castor and repositioning pivot angles reducing stress on the joints. The increased castor allows for proper alignment and improved handling. We also replaced the weak factory ball joints with 1ā stainless steel uniballs for maximum strength and increased articulation. For the inner pivots, we used heavy duty Ā¾ā FK Heims for additional camber and caster adjustability. To mount the arms to the spindle we include high grade 17-4 stainless steel misalignment spacers and military grade F911 hardware. All of the components on our upper control arms are rebuild-able or replaceable to make this product last a lifetime. The arms come preassembled and include detailed instructions for easy installation.
- Wheel Travel: Additional 1ā of travel compared to stock
- Amount of Lift: Allows for 0-3ā of lift
- Track Width: Stock
- Maximum Backspacing: 4.75ā
- Minimum Rim Size: 16ā
- Coil over Shock Size: Factory or OEM replacement coilovers
Wheel Travel / Lift
The upper control arms must be paired with OEM replacement coil overs to lift the vehicle. They offer an additional 1ā of down travel compared to the stock upper control arms. These arms are compatible with King, Fox, Bilstein, ADS, and Icon coil overs. Do not install these upper control arms with coil spacers that over articulate the suspension.
*Some King OEM replacement coil overs have short reservoir hoses that come in contact with aftermarket upper control arms. This can be solved by installing longer reservoir hoses or adjusting the reservoir to allow for more slack in the hose.
Tire Info

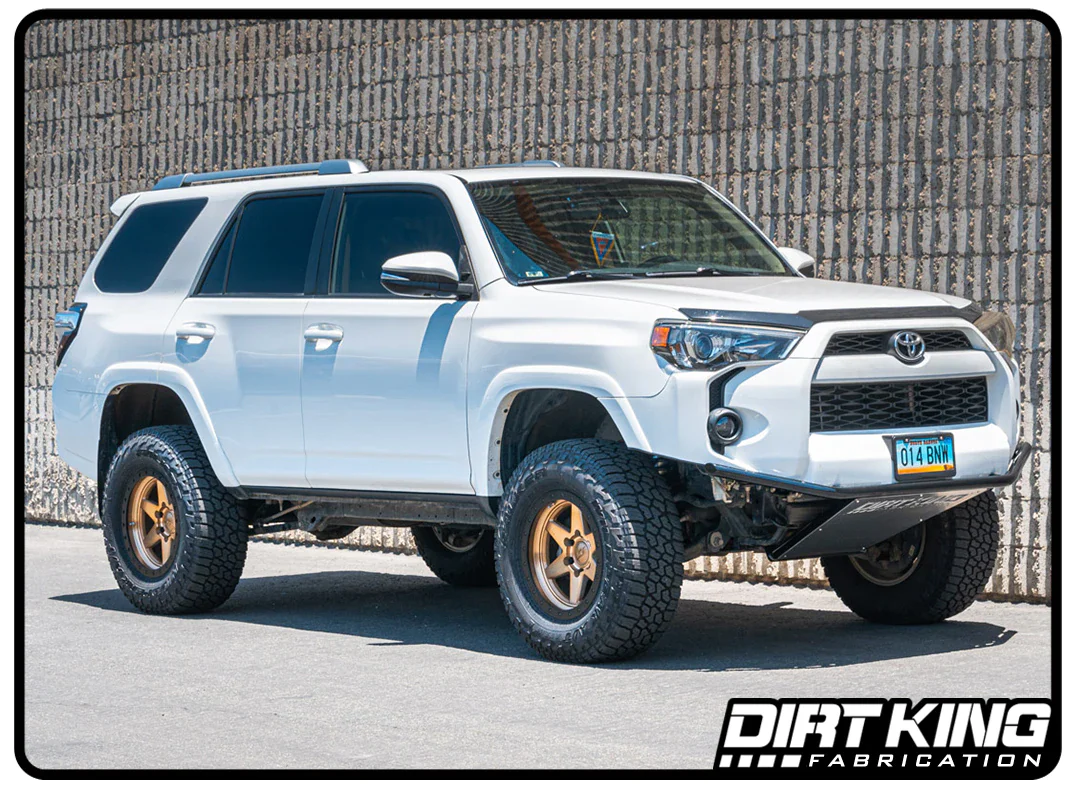

The upper control arms will allow for 33ā tires but the front section of the cab mount may need to be cut to avoid tire rubbing while turning. In addition, the front bumper may require trimming for proper tire clearance.
WHAT'S INCLUDED:
- Boxed plate upper control arms
- Ā¾ā FK heim joints
- 1ā FK uniballs

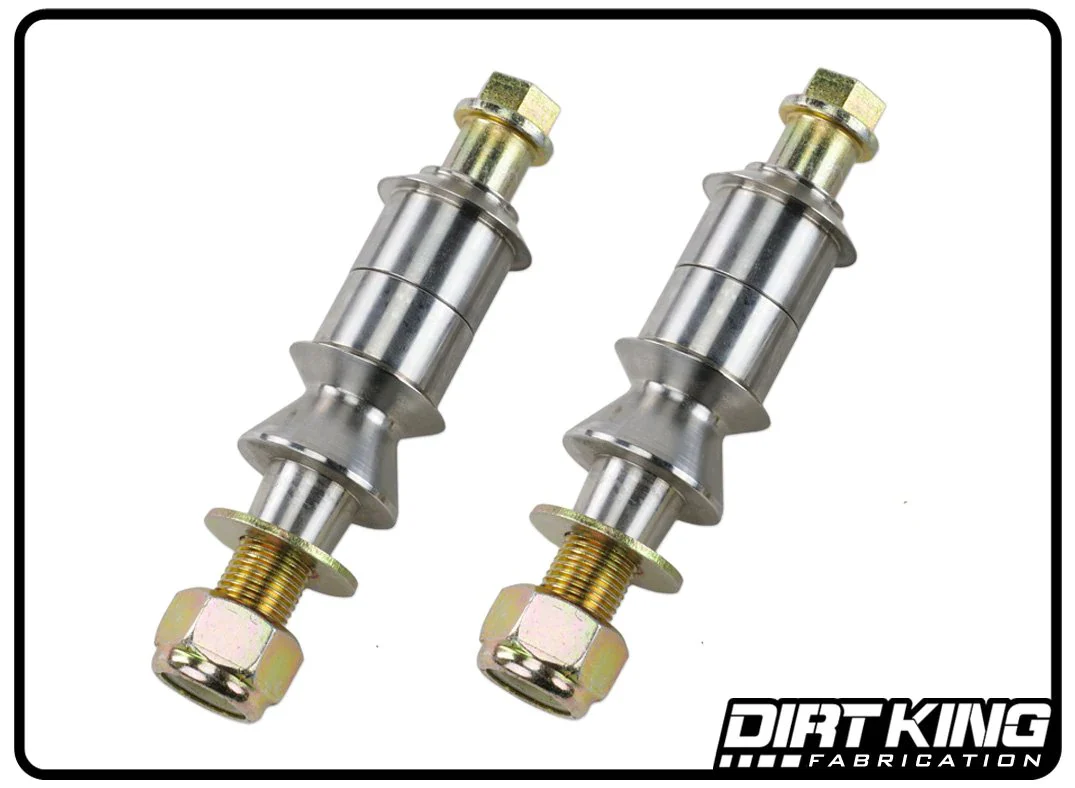

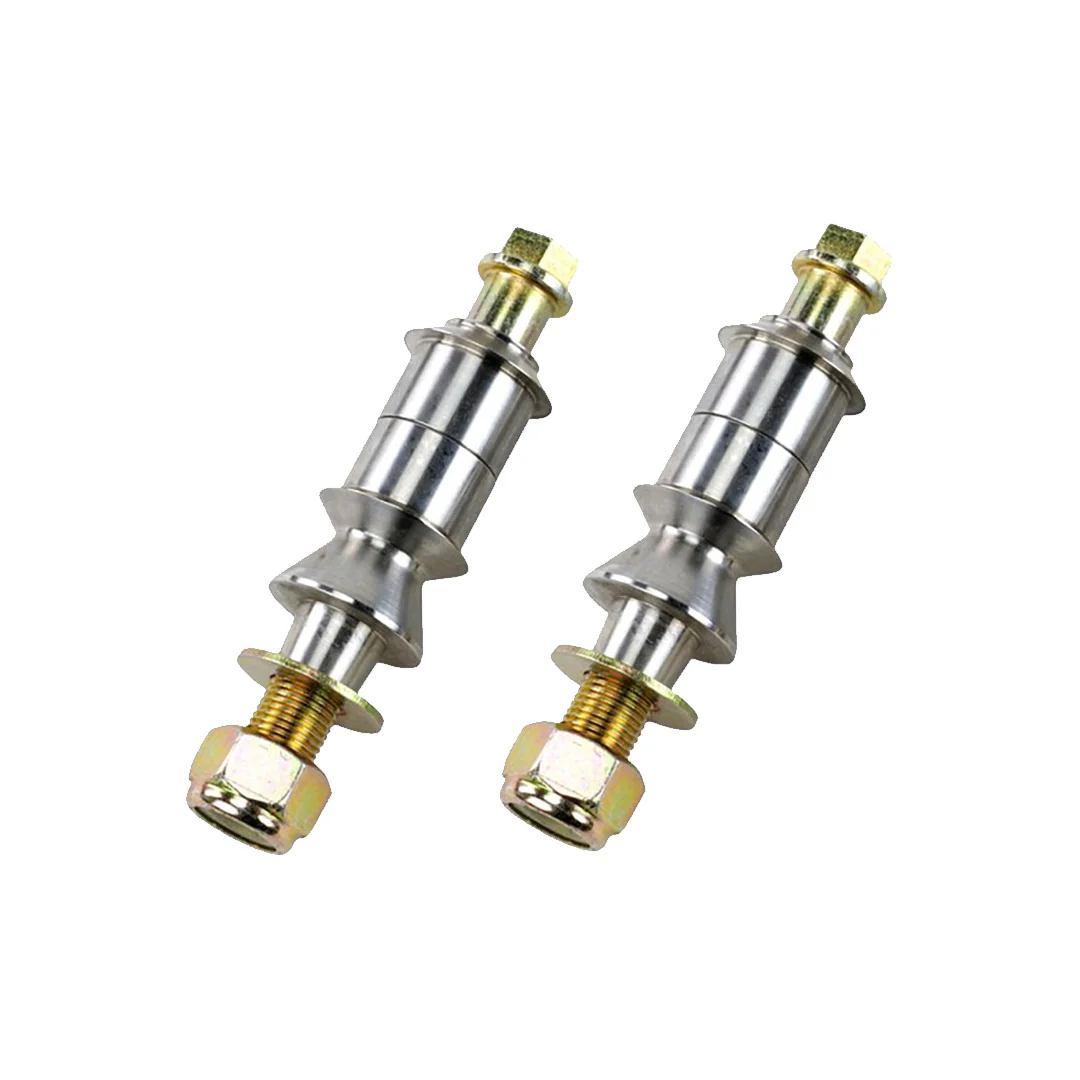

- 17-4 stainless steel misalignment spacers
- Military grade F911 hardware
- Durable black powder coat
- Dirt King sticker pack
- Installation instructions
FEATURES:
-
CAD designed
-
Boxed plate construction
-
Utilizes American made FK bearings
-
4130 chromoly uniball cups
-
Brushed stainless steel logo plates
-
Preassembled for fast installation
-
Zinc plated components for corrosion resistance
-
Professionally MIG welded
-
Proudly made in the USA
