The Story

FREE Morimoto XB EVO+ Fog Lights WITH EVERY HEADLIGHT

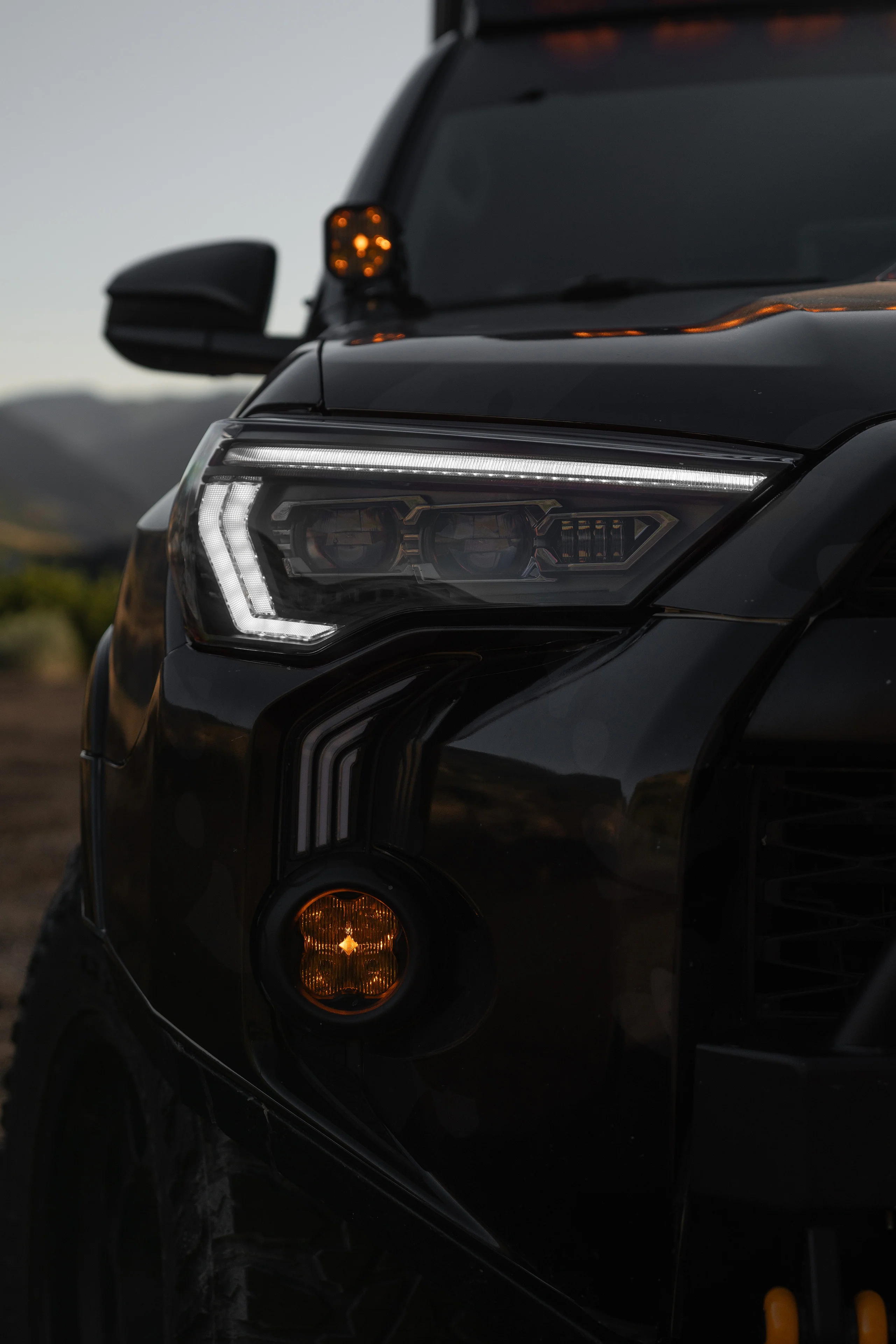

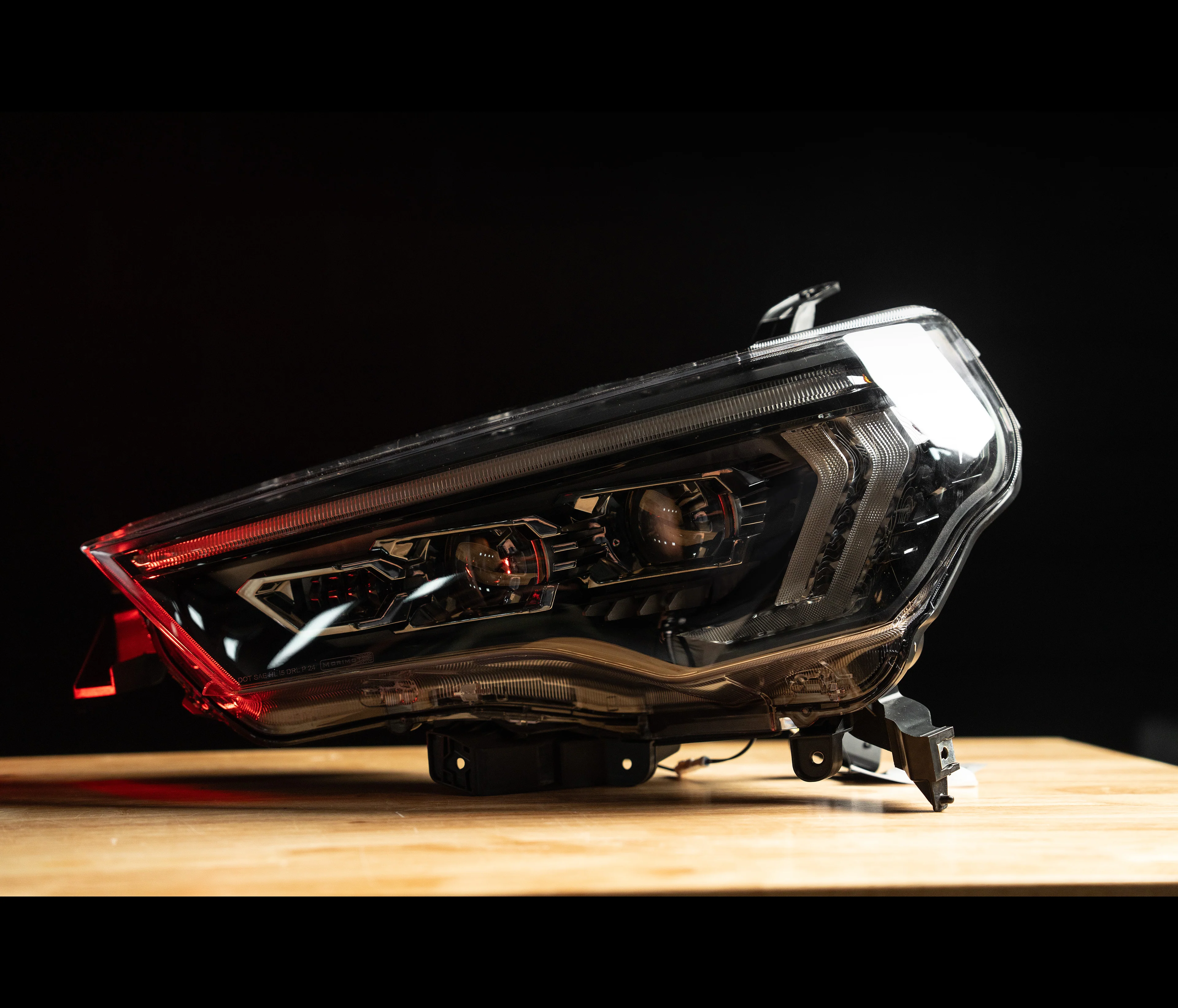

The all-new XB Evo headlights are a showcase of everything Morimoto is made of. Packed with features that demonstrate a true attention to detail including the latest in technology, compliance, quality, and styling, these headlights are designed for enthusiasts who are serious about all the above, even if it comes at a premium. Our patent-pending heating system warms the surface temperature of the headlight lens to minimize frost buildup when driving through wet and snowy conditions in the wintertime. The signal swap system allows users to personalize how the daytime running lights and turn signals operate according to personal preference, all through a simple plug n play key on the back of each headlight. The daytime running light can be configured to run full-time in either white or amber with no compromise in intensity either way. When starting your 4Runner, the optics will automatically illuminate in a multi-stage sequence before turning back off. XB Evo headlights aren’t cheap, but they are built to a high standard and should easily last the life of your 4Runner! We’re proud to stand behind the product with an industry-leading five-year warranty.

XB Evo: Much more than a design refresh, these headlights showcase Morimoto’s commitment to technology, compliance, quality, styling, and performance for serious enthusiasts.

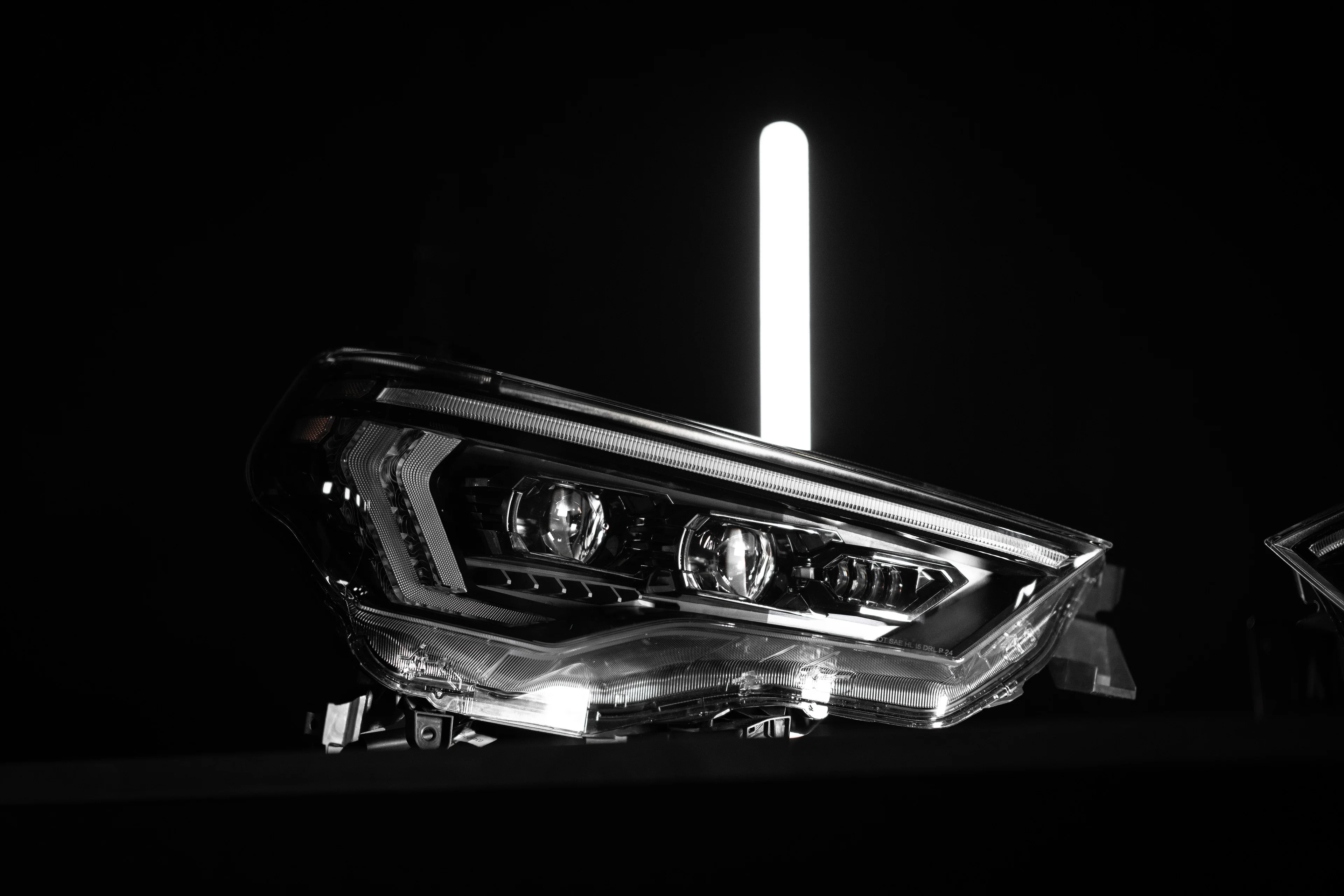

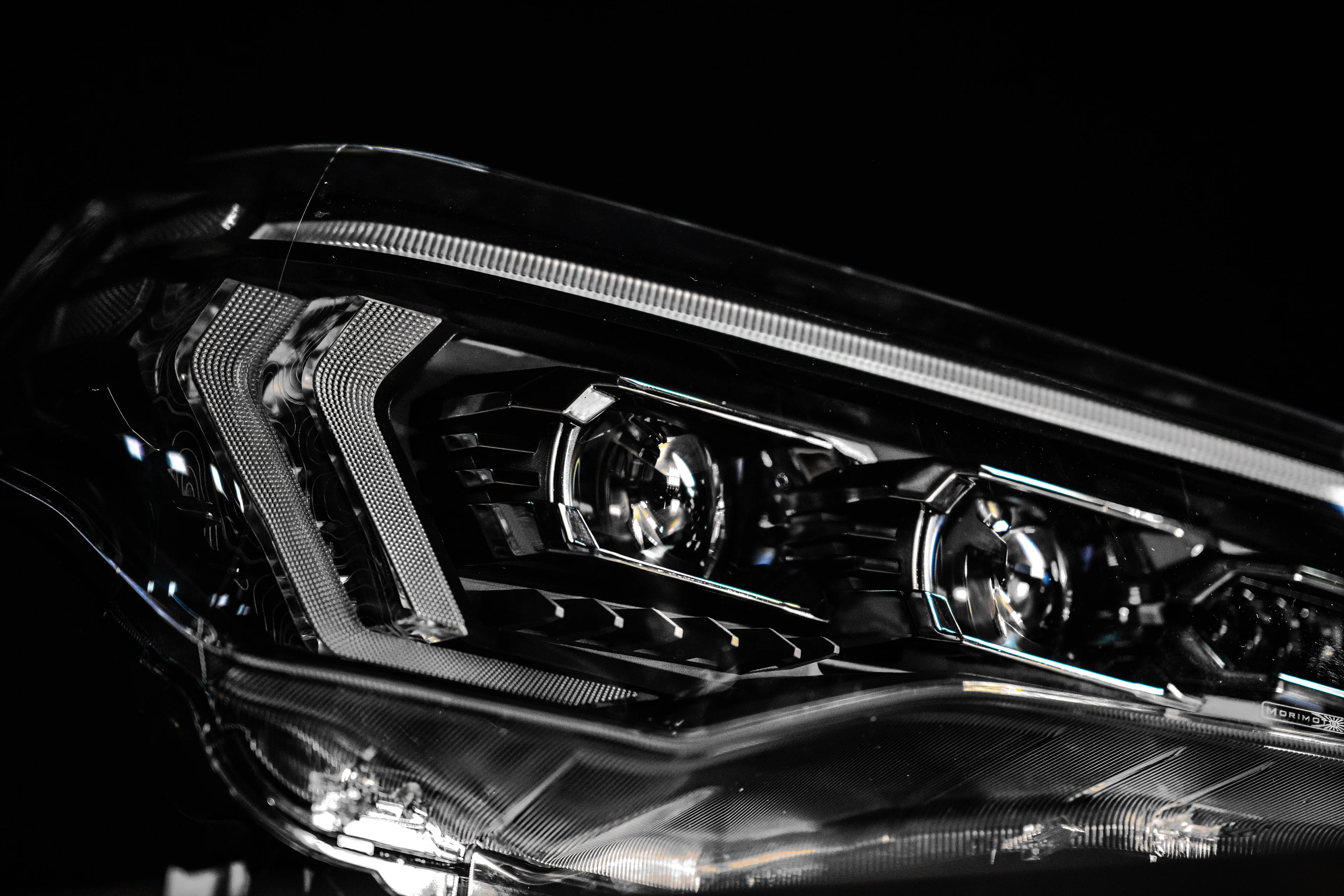

All New Optics: Enables light output that exceeds the rigorous standards of the IIHS, with exceptional intensity and distribution. Utilizing dual Bi-LED projectors powered by Nichia's latest automotive LEDs, nothing will outperform the XB Evo.
On and Off Road: DOT Compliant for public roads in the USA in standard form, with an optional Supercharged LED driver to boost intensity by 30%, making them the brightest option for 4Runner owners who want to maximize output for off-road use.

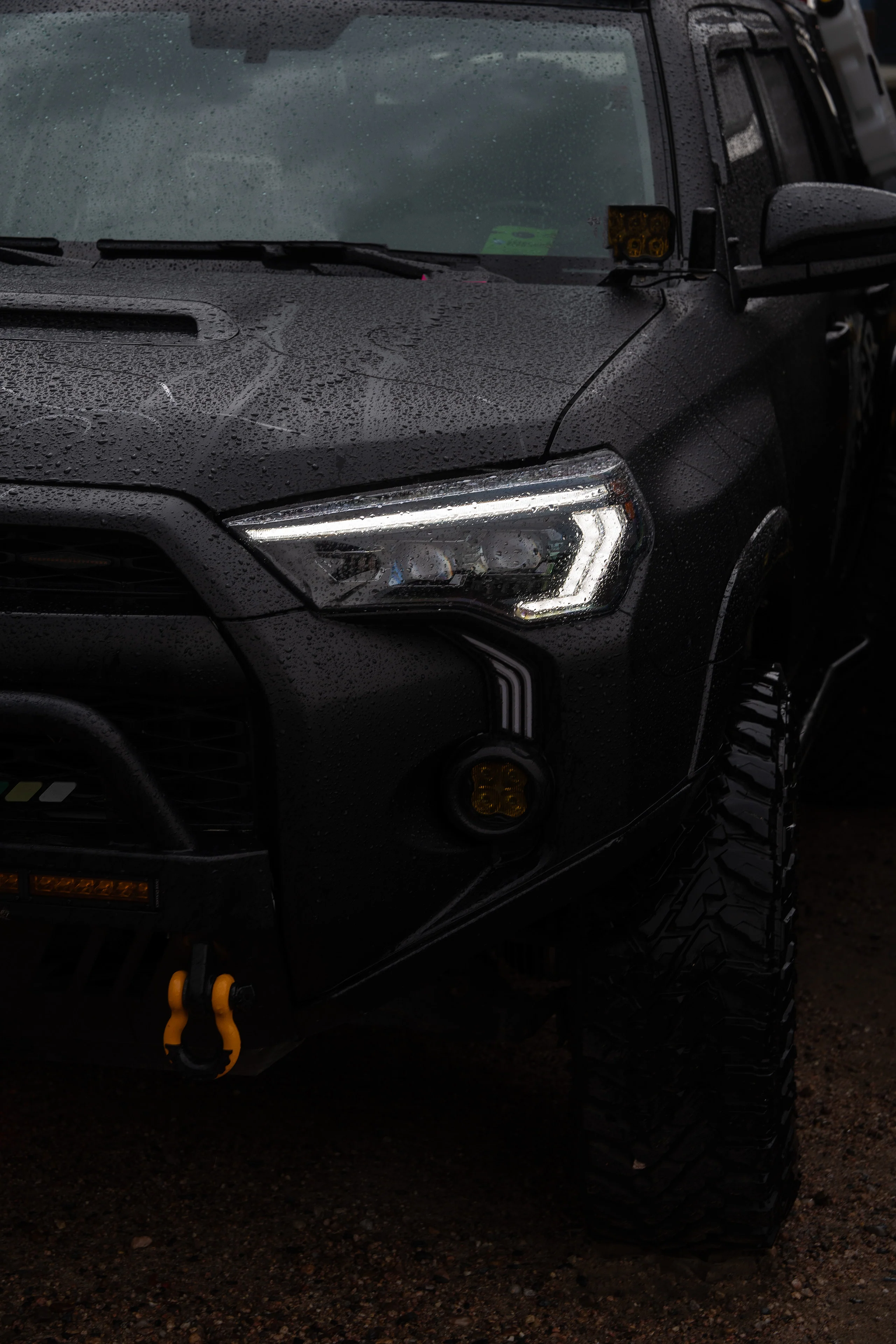

Frost-Free System: Warms the lens surface to prevent frost buildup during wet and snowy conditions in winter. Activated by flashing the high beams four times when the temperature drops below 5C, this ensures consistent headlight performance in cold climates.

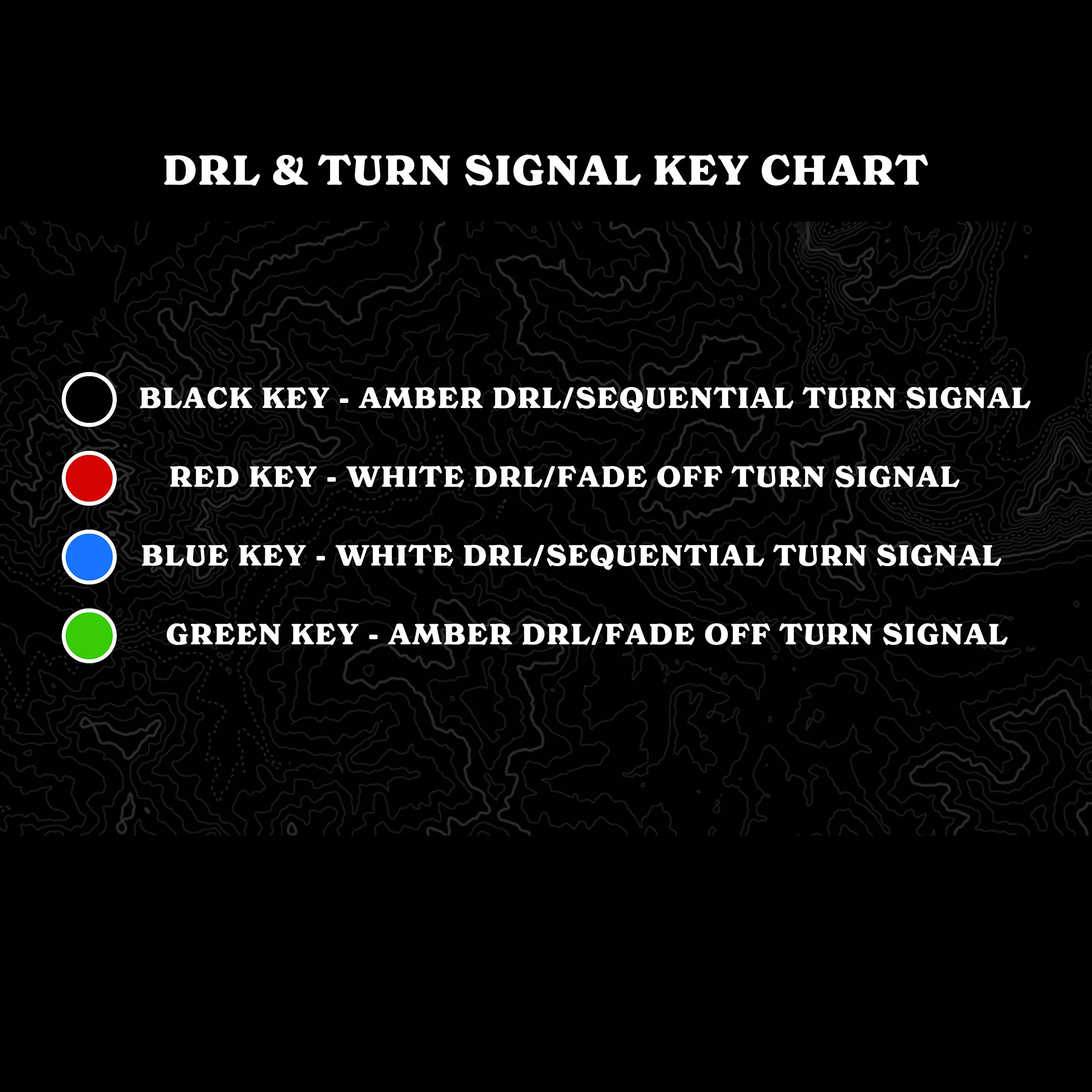

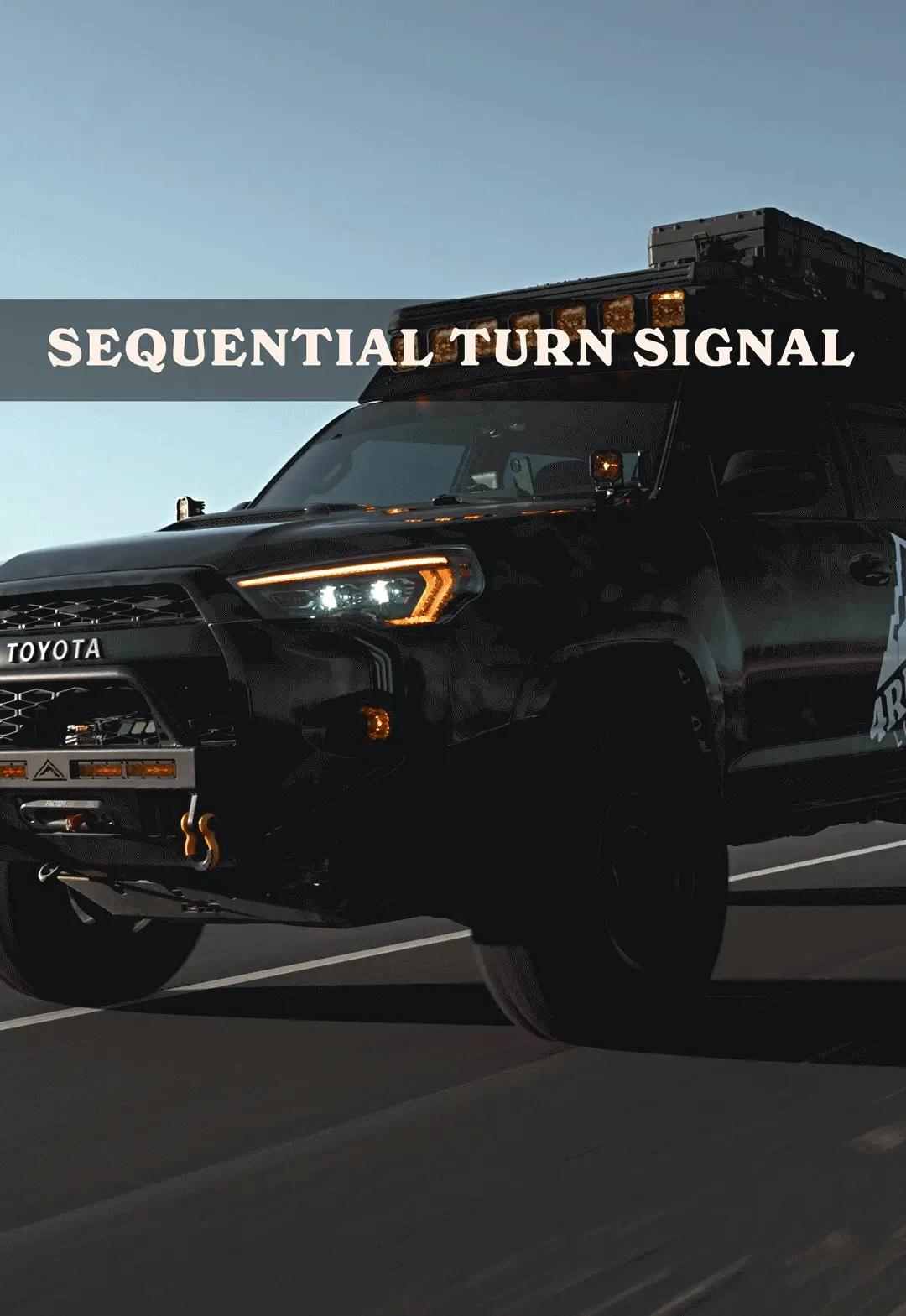

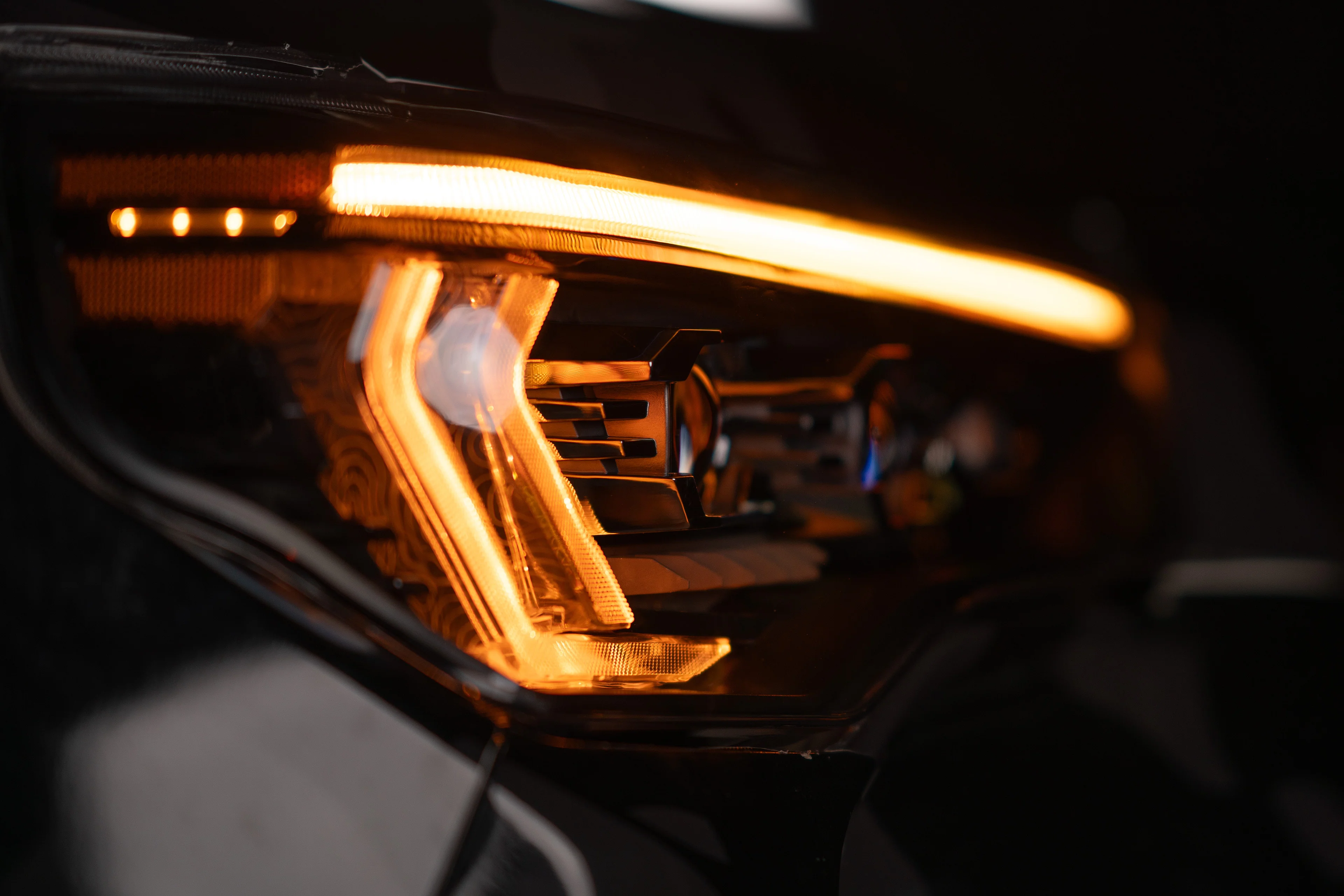

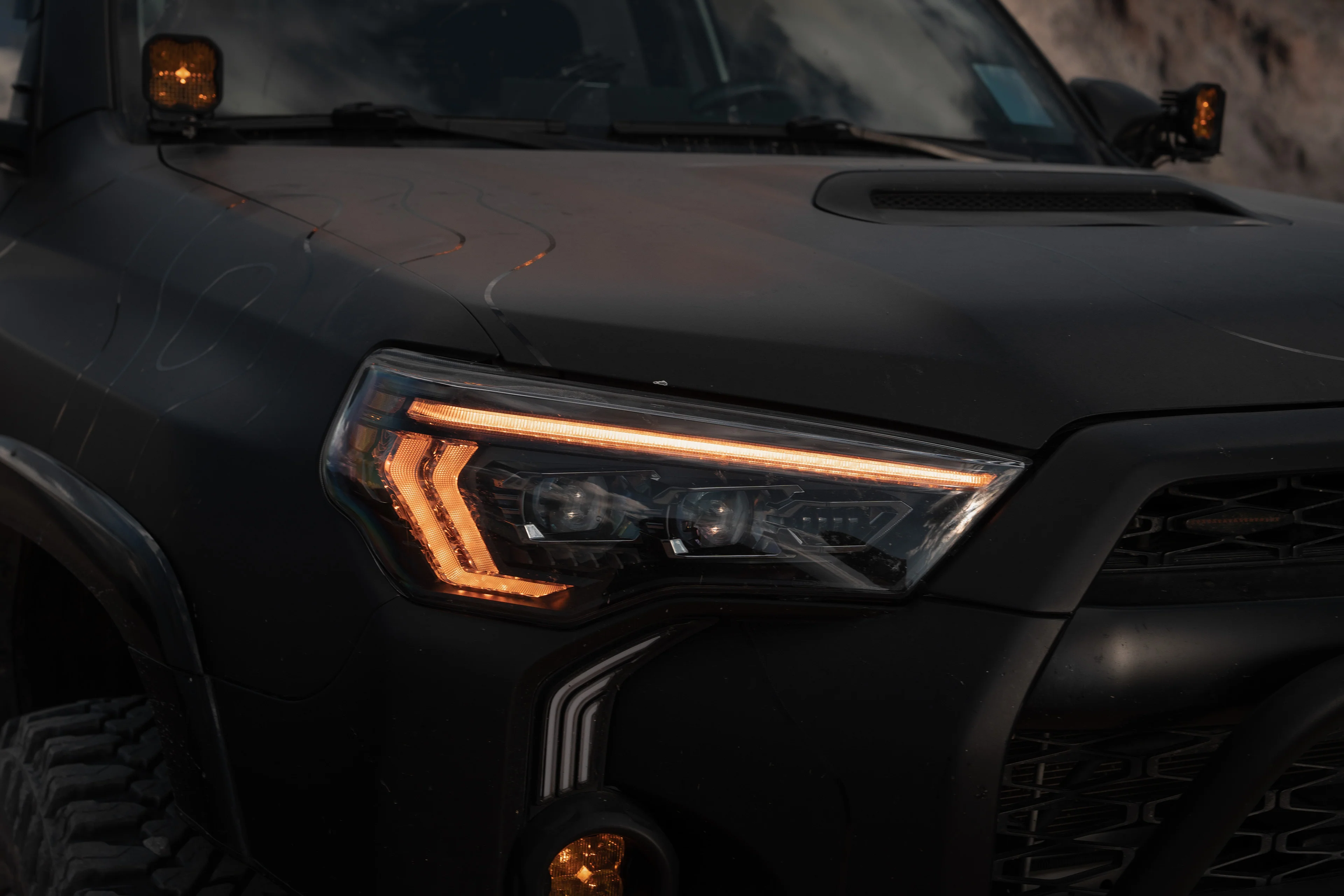

Signal Swap Keys: Enable users to personalize the operation of daytime running lights and turn signals via a plug-and-play key. The XB Evo can be configured to run with white or amber daytime running lights and sequential or standard turn signals.
Designed, engineered, and tested: In the USA by Morimoto, the XB Evo headlights are built with the highest standards, using the latest in technology and raw materials available today, and are backed with an industry-leading five-year warranty.

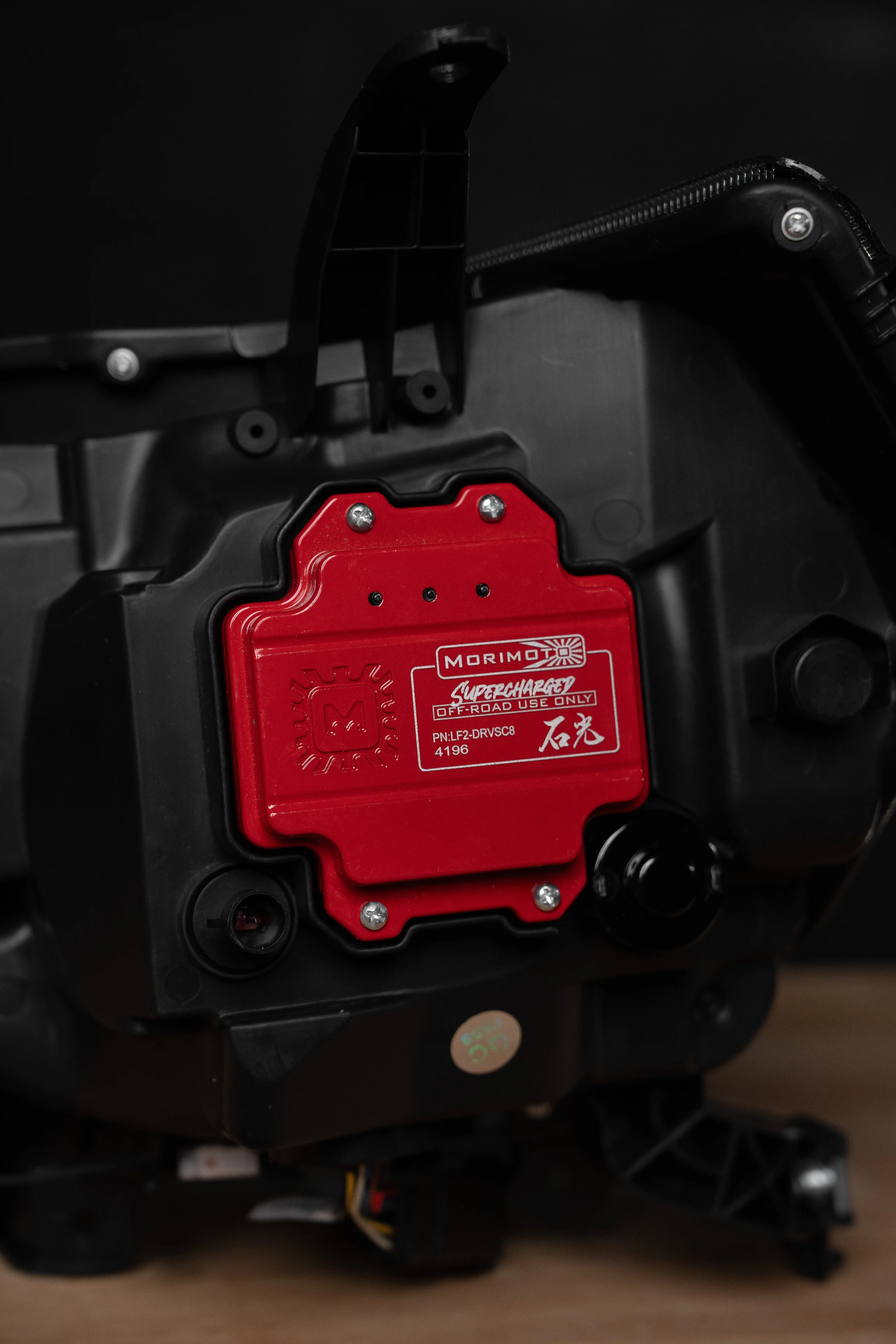

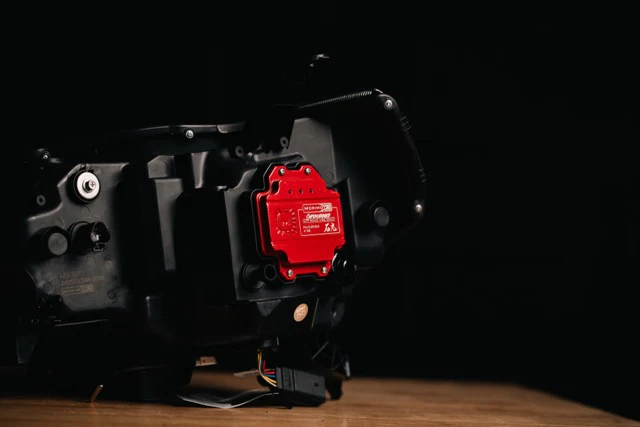

Superchargers: Headlight LEDs are dampened for Streel Legal use until you install the optional Supercharger which allows your LED to shine at 100% output.

SKU:

LF2-531, Supercharger

LF2-DRVSC8

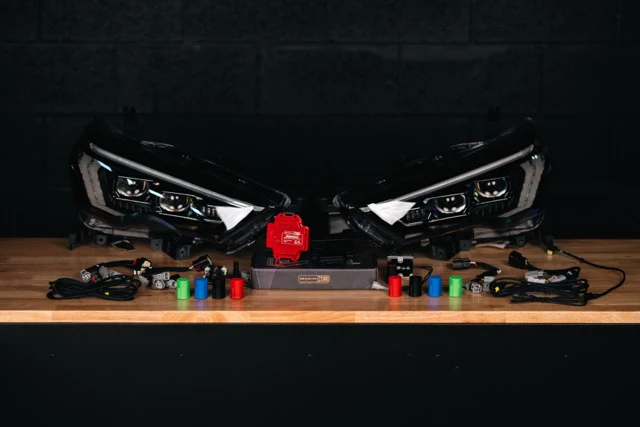

WHAT’S INCLUDED

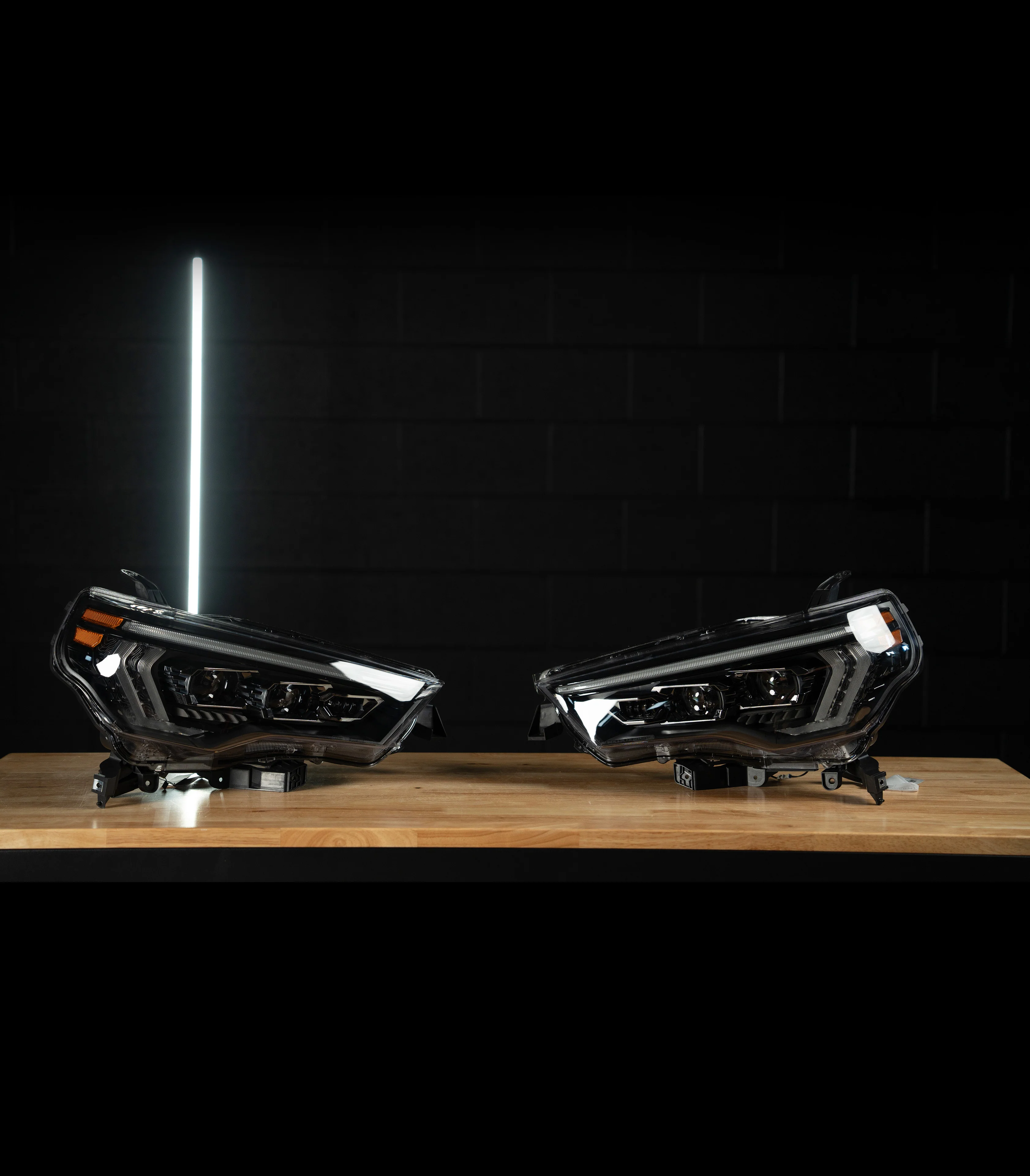

Headlights: 2x (One Pair) 14-24 Toyota 4Runner XB Evo

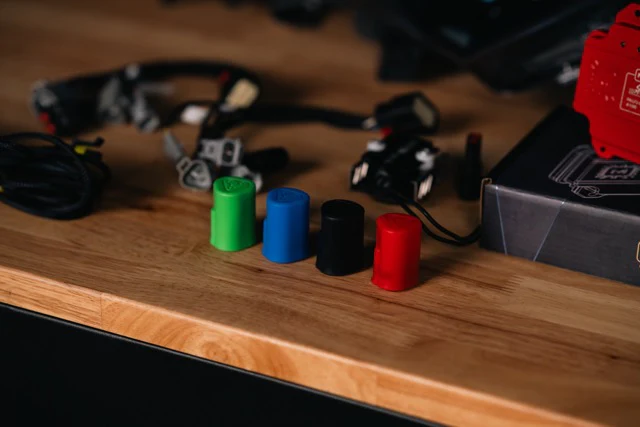

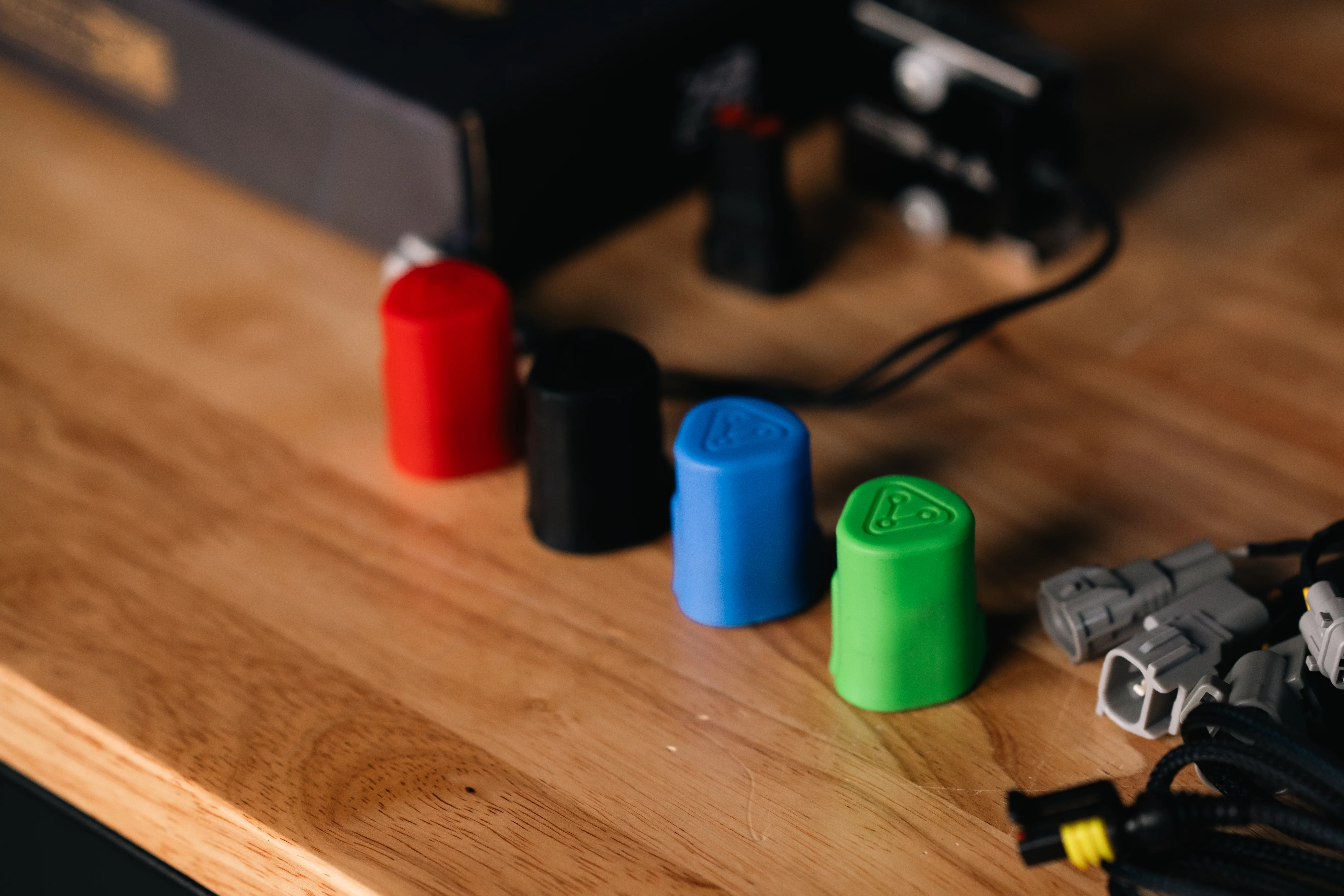

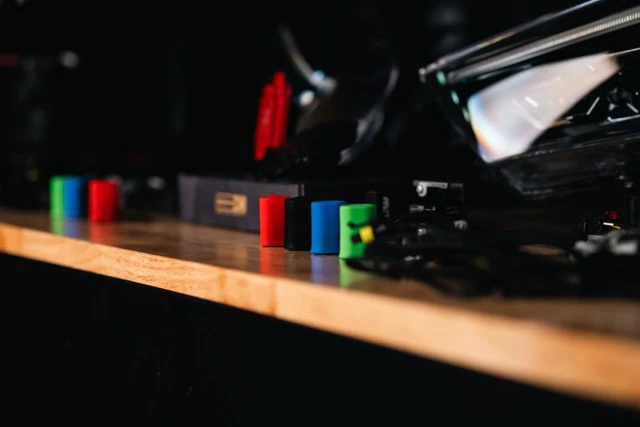

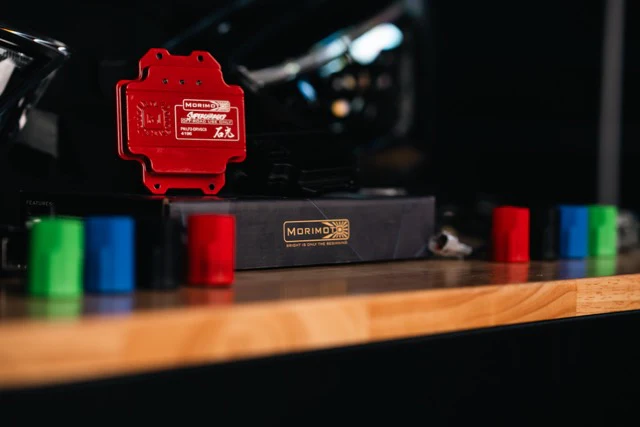

Function Selectors: 8x (Four Pairs) For DRL and Turn Signal Settings

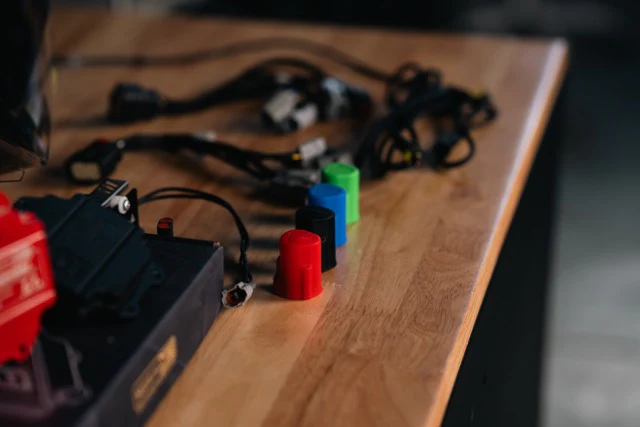

Wiring: 2x Halogen Adapters, 2x LED Adapters, 2x Magnet Mount Resistors, 1x DRL Harness, 1x DRL Harness Extension, 1x Fuse Tap
Warranty: Five (5) Years

COMPATIBILITY

Toyota 4Runner: 2014-2024 (All)
Compliance: Meets all DOT, SAE and FMVSS108 Standards*
Supercharged Drivers: LF2-DRVSC8*
*NOTE: Installation of Optional Supercharged Drivers results in non-compliant intensity. Not for on-road use in USA or Canada.
NOTE: These headlights were developed for compatibility with North American vehicles. Morimoto does not guarantee compatibility on trucks outside of North America.

TECHNICAL SPECIFICATIONS

Traffic Pattern: LHD / Right Hand Traffic Only
Output (Standard Drivers): DOT (FVMSS108) Compliant (LB2V and UB2)
Output (Supercharged Drivers): Non-Compliant
Main Optics: 2x Type 1 Ishida Optic Bi-LED (1x Nichia NC4W193F @ 750mA)
High Beam Assist: 1x Type D Ishida Optic HB (4x Nichia NCSW131G @ 750mA)
Functions: Low, High, Park, Turn, DRL, Welcome, and Lens Heating

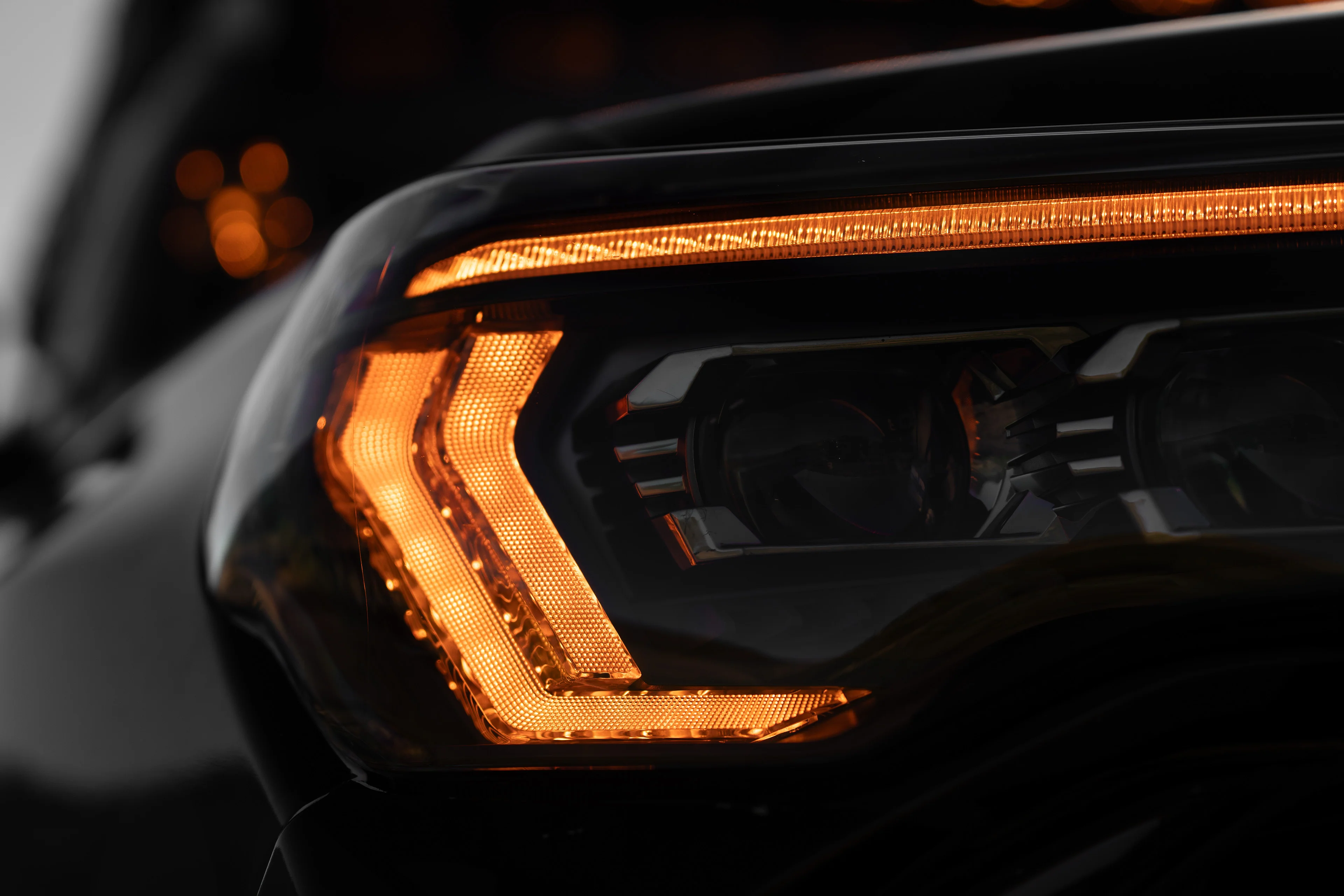

Turn Signal Modes: Sequential or Fade Off (Integrated)

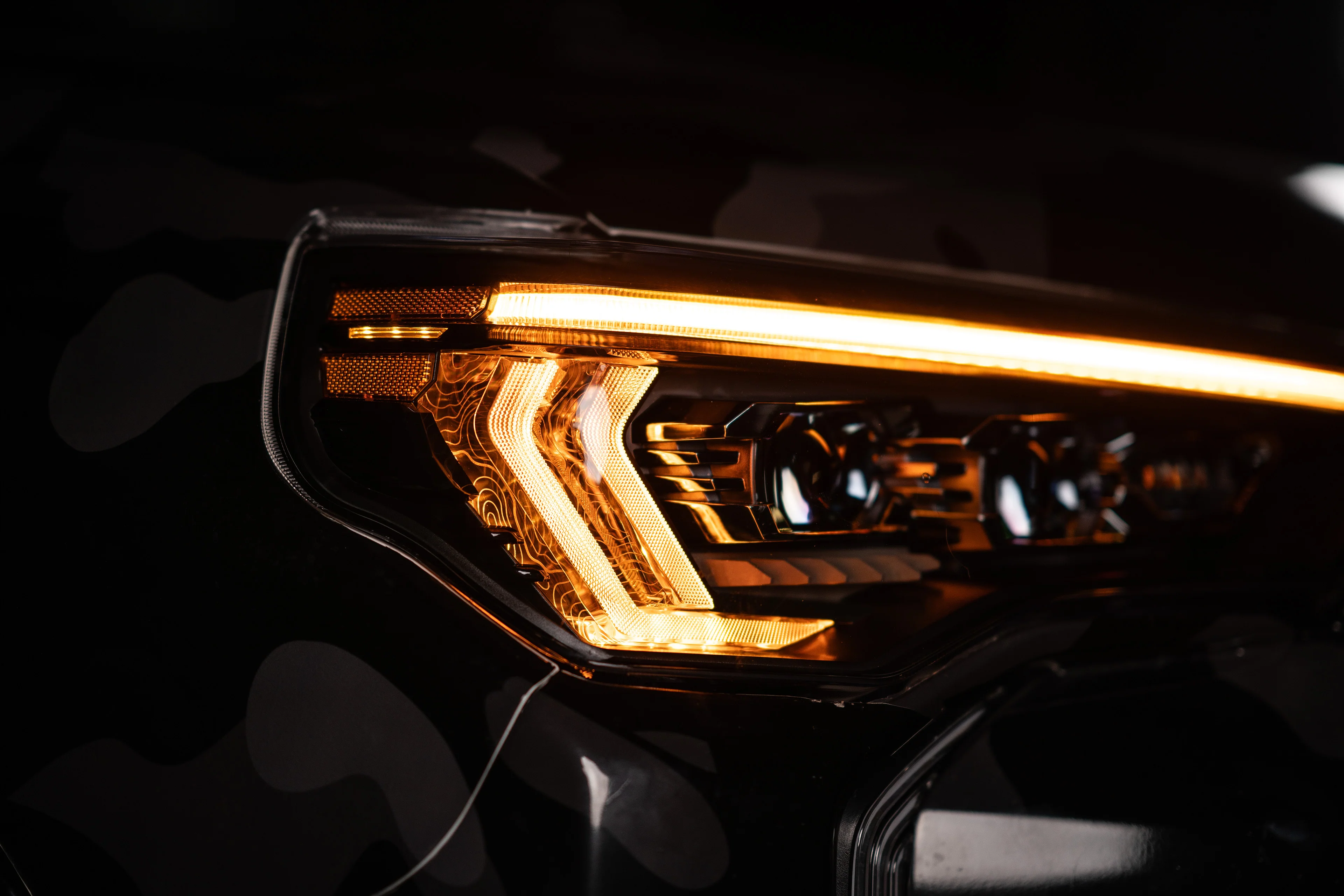

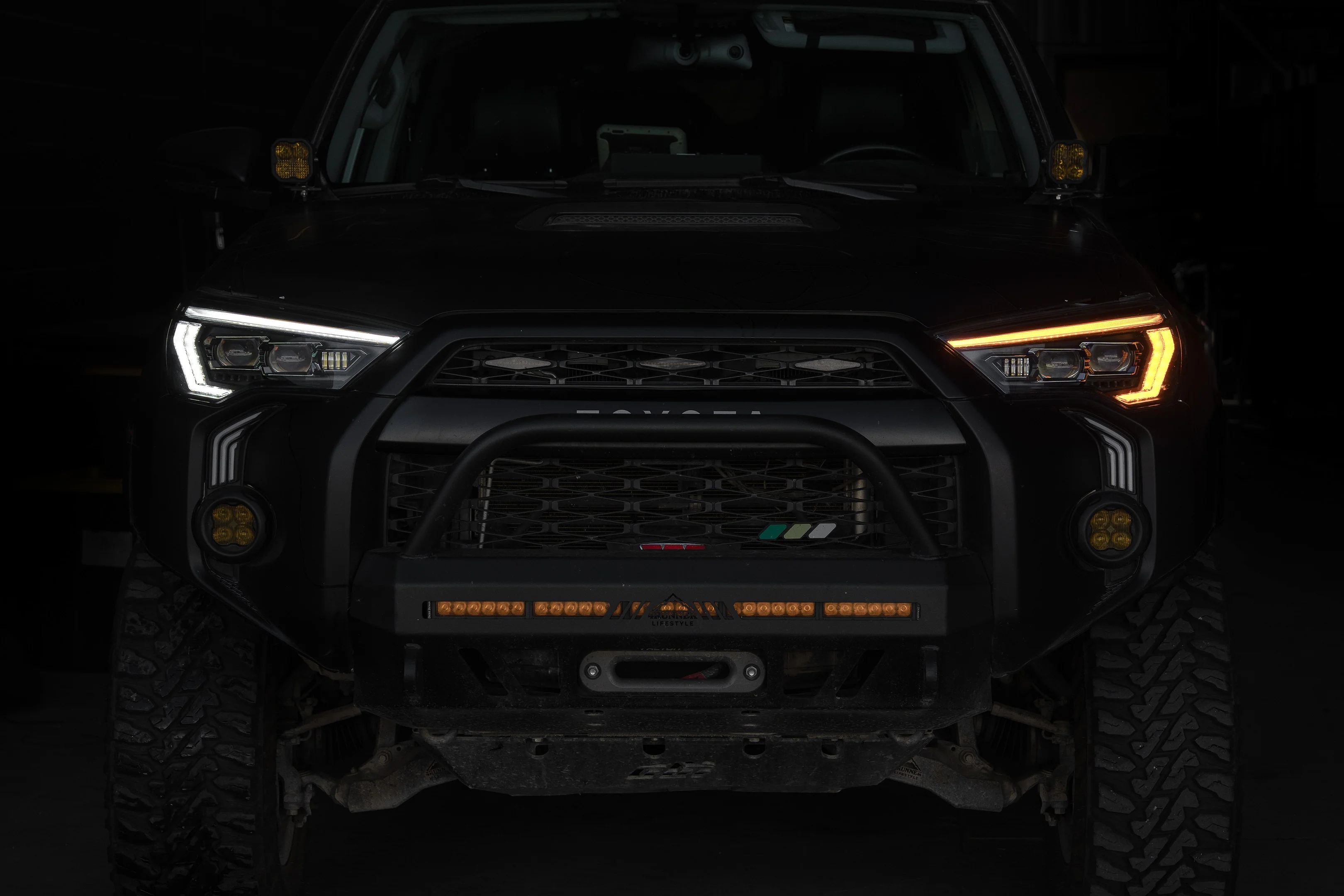

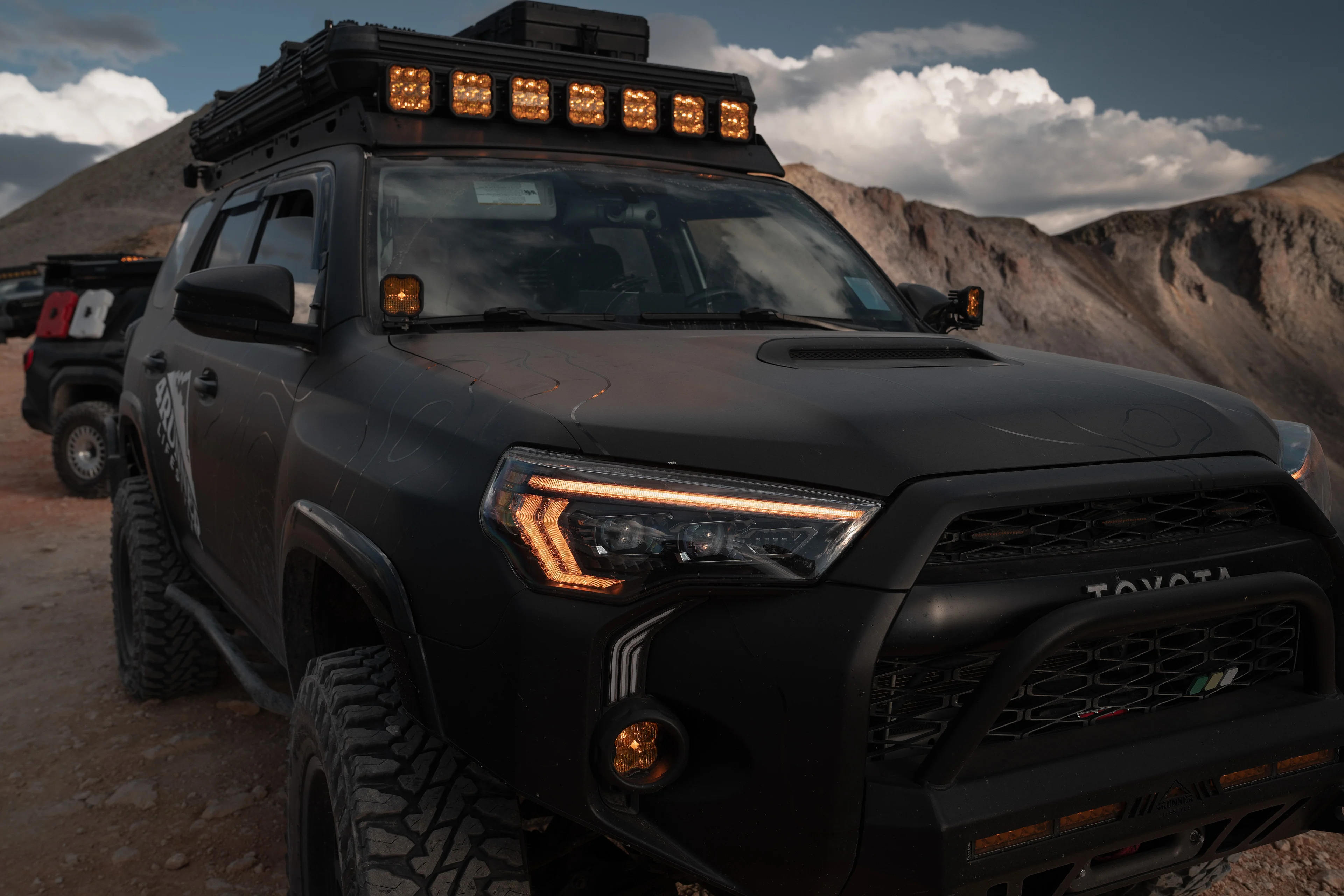

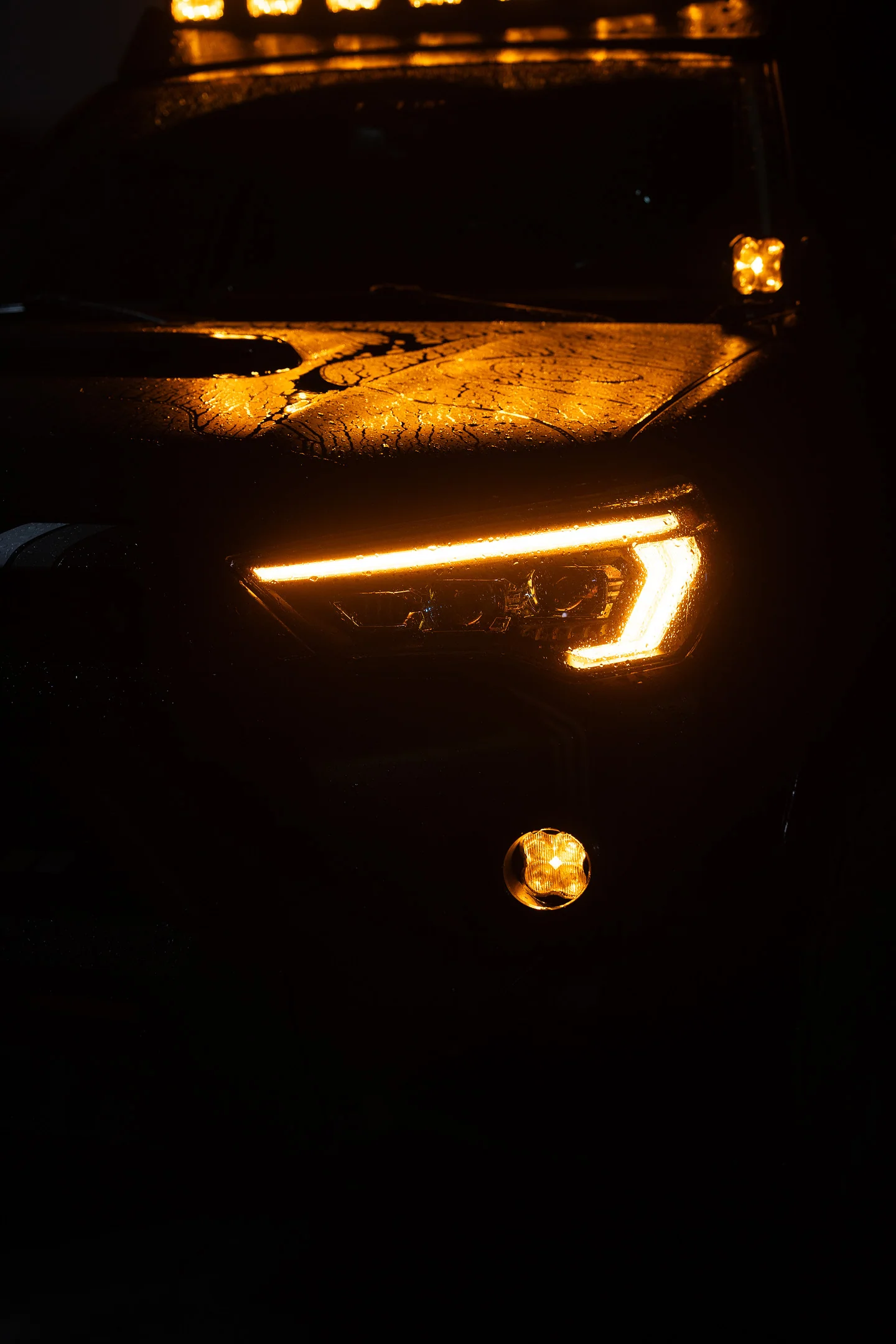

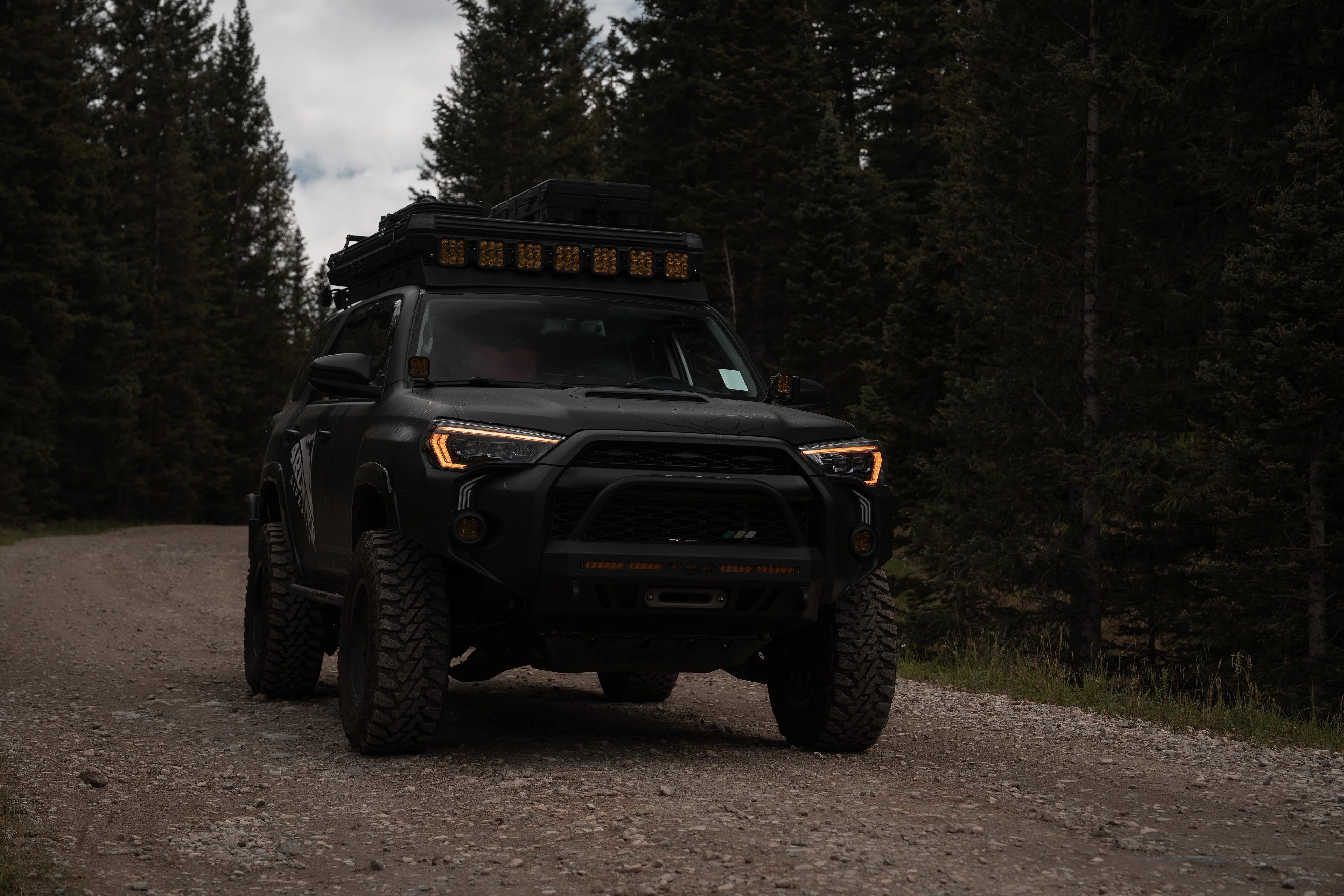

DRL Colors: White or Amber (Integrated)

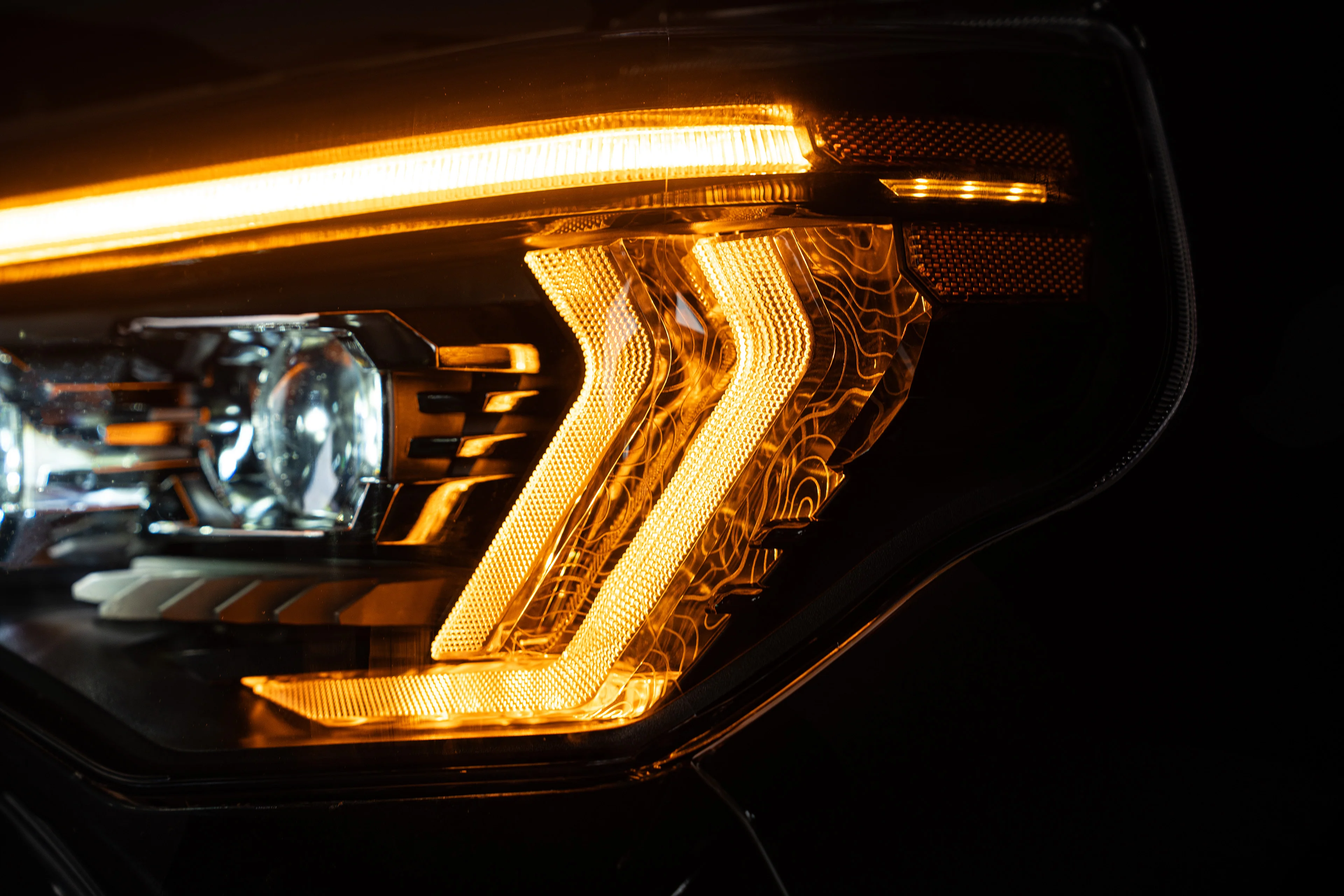

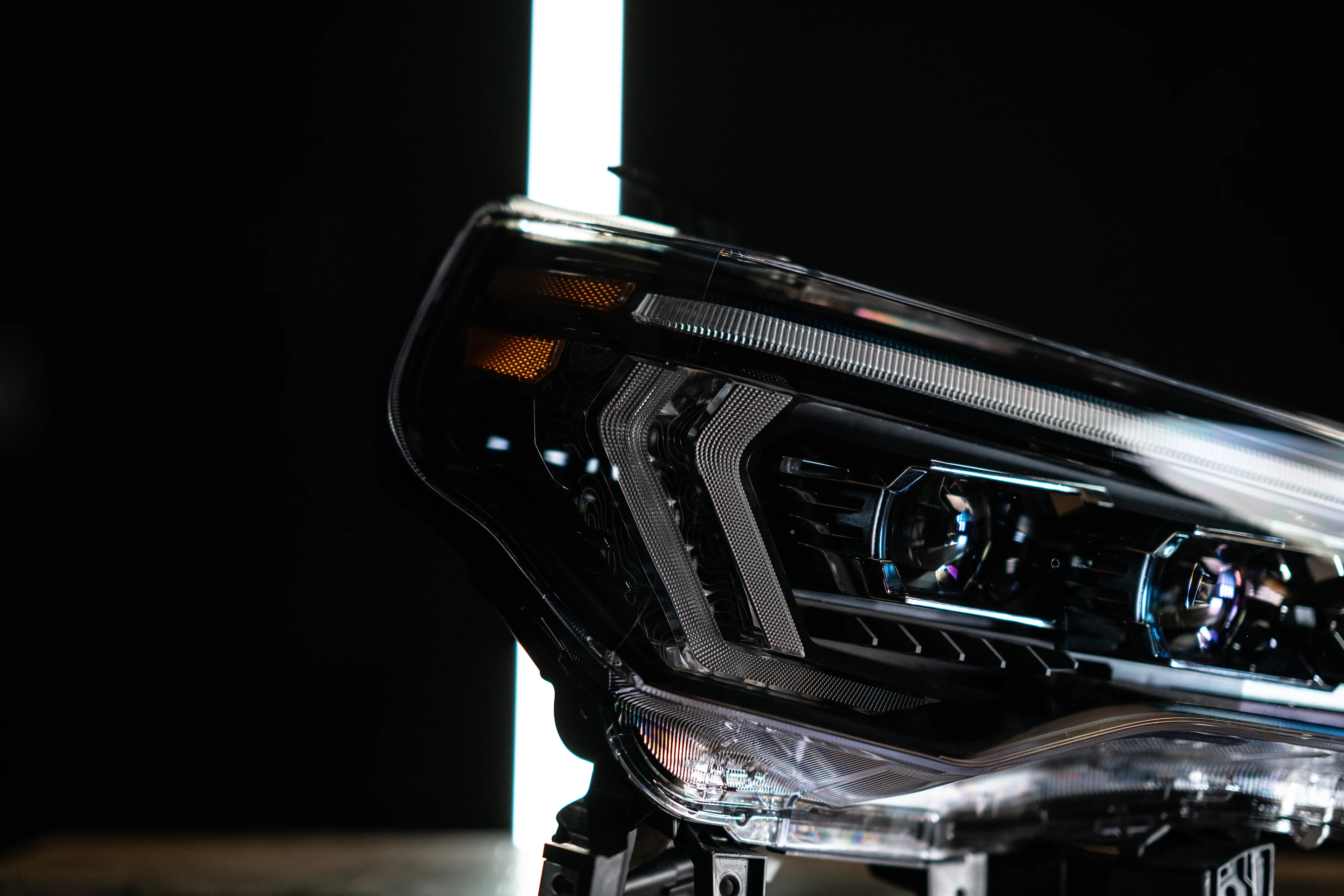

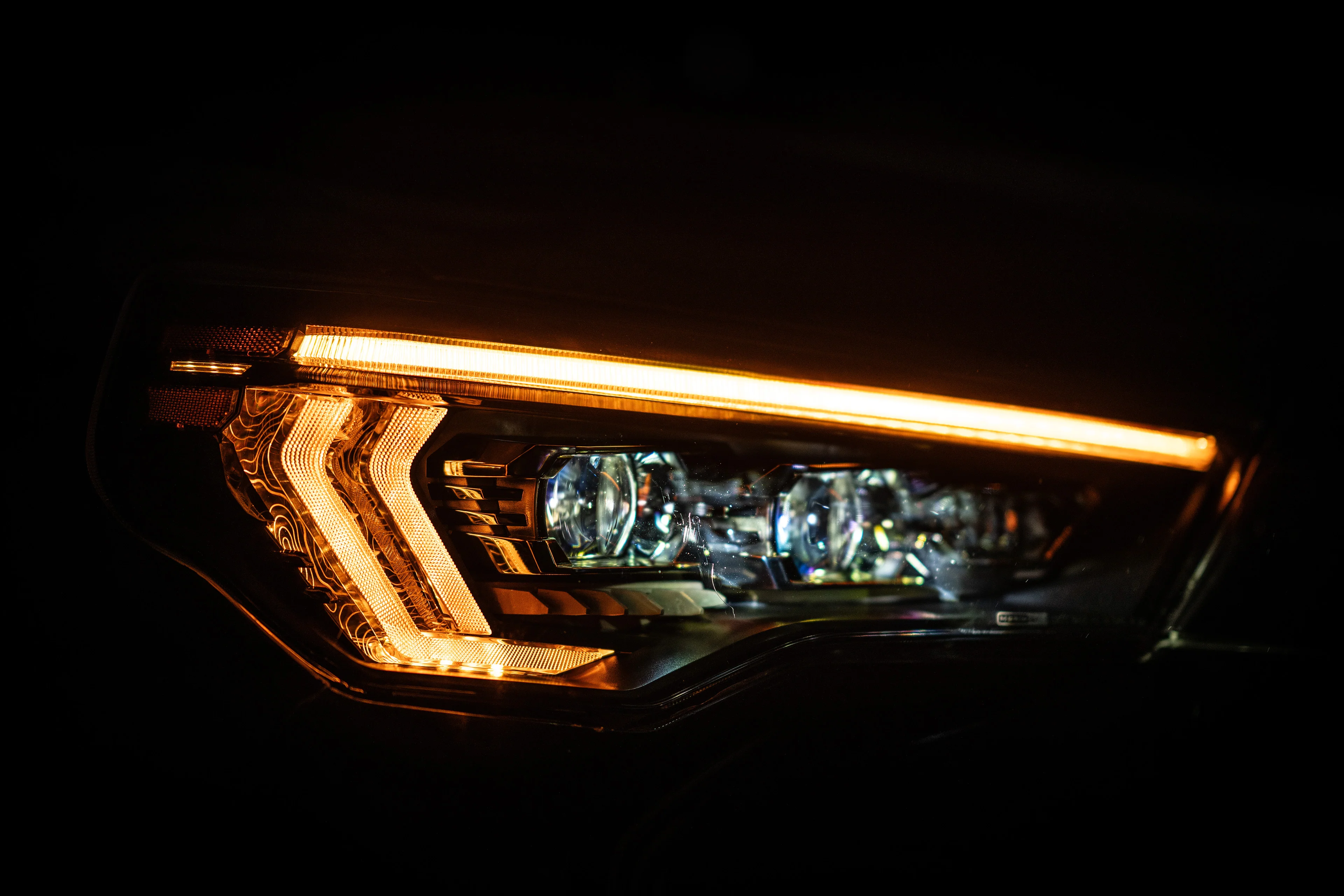

DRL/Signal Optics: Glass-like 3D TIR Optics with Topography sidewall pattern

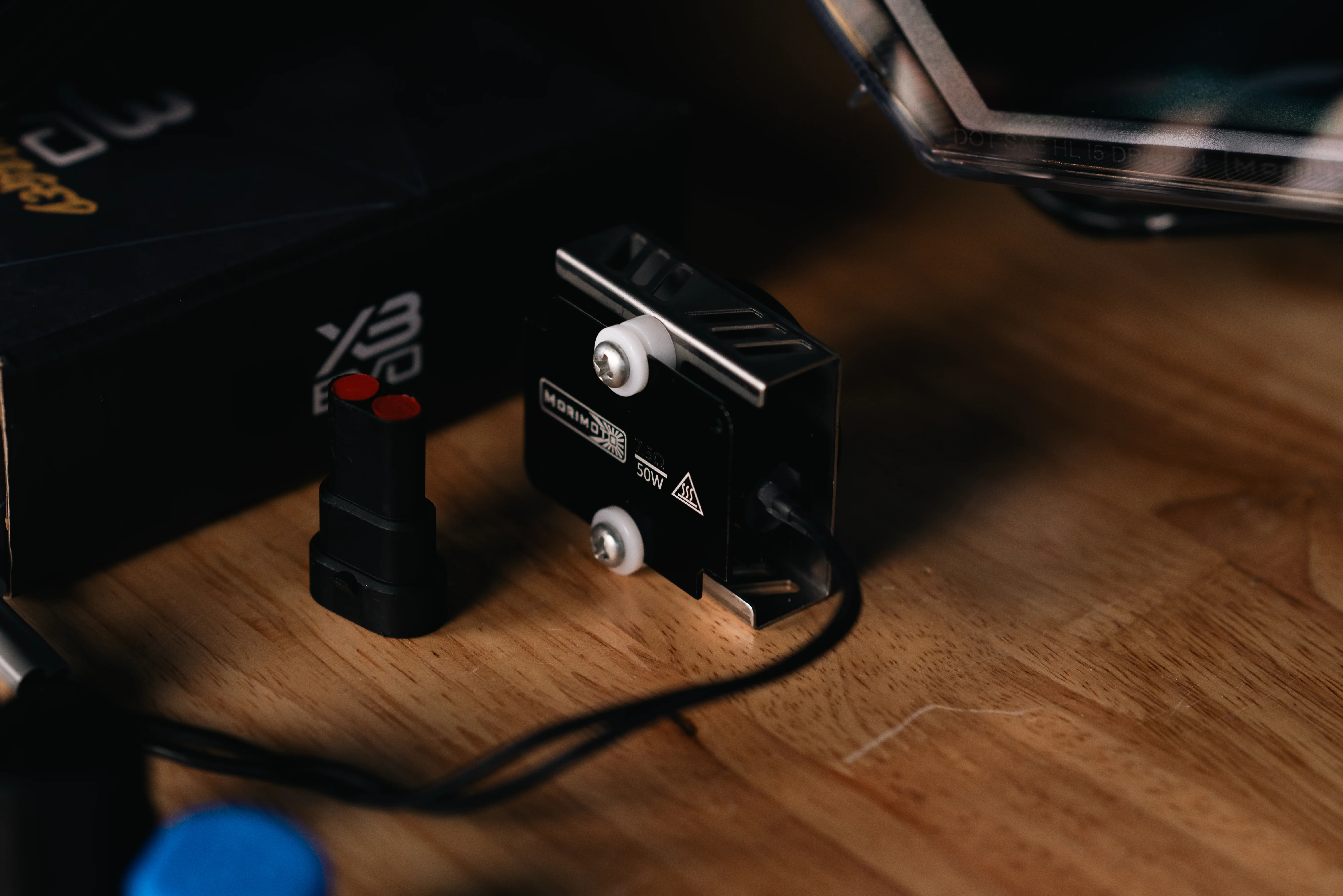

Frost-Free System: Logic Controlled 50W Ceramic w/ circulation fans
Internal Finish: Two-Tone Piano Black and Titanium w/ contrasting textures

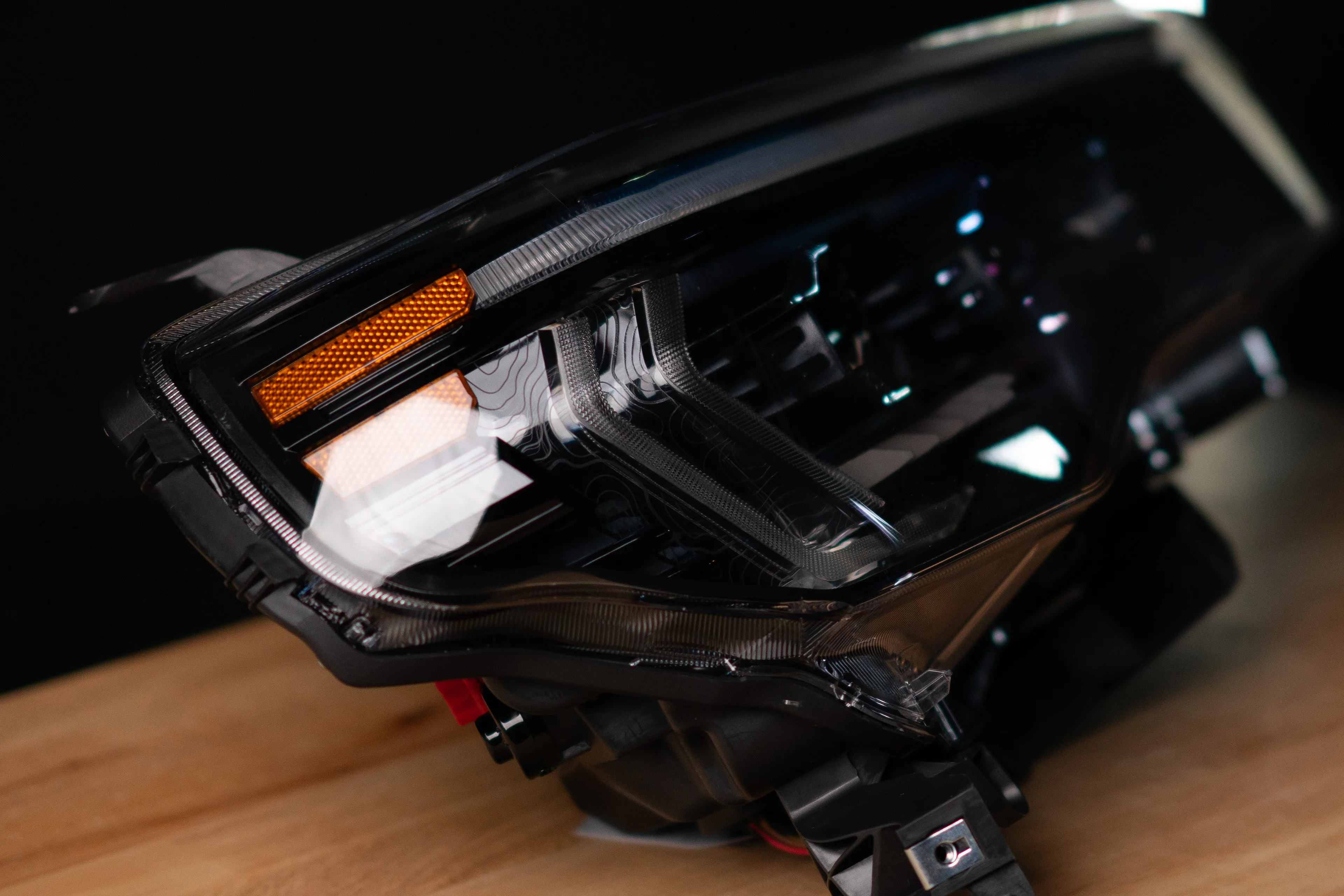

Side marker: Amber side reflex reflector (DOT compliant)
Wiring: Plug n Play for all sub-models within model year range
Lens Details: Polycarbonate with UV-Shield Hard coating (Exceeds OE-Toyota 3Khr benchmark)
