Total Chaos Gen 2 Caddy Kit Weld On Shock Hoop For 4Runner (1986-1995)

FEATURES

Pre-bent 4130 chromoly shock hoops are designed to install 8" 2.5 coil over shocks from KING, FOX or Sway-A-Way.

CNC laser cut cross shaft bolt on plates are used to construct the coil over shock mount tower that ties into main shock hoop. Extended cross shaft hardware is supplied.

Included pre cut 4130 chromoly support tubes to maximize upper shock mount strength.

Secondary shock tabs, weld on remote reservoir mounts and Grade 8 hardware is included.

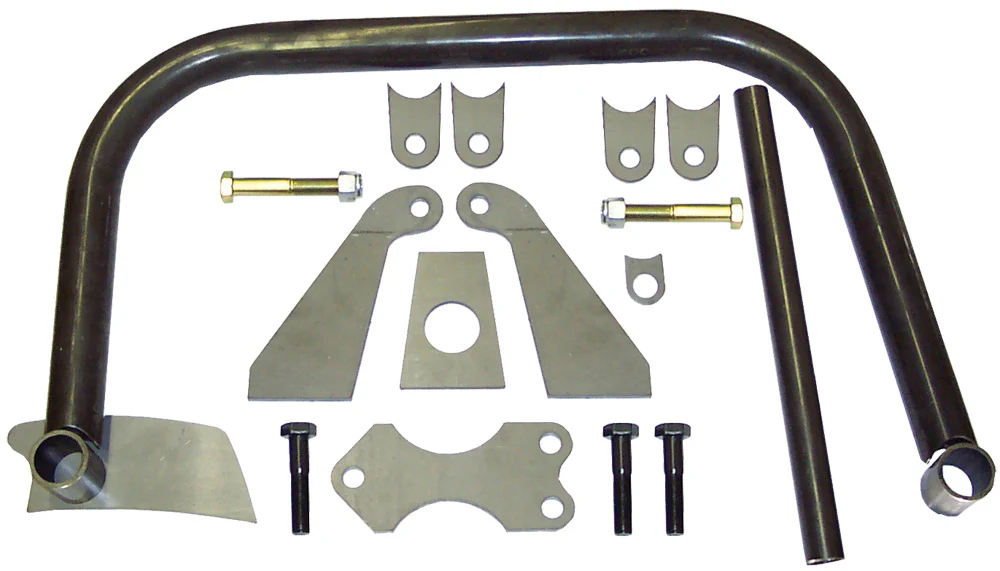

PARTS INCLUDED

GEN 2 CADDY HOOP - MAIN HOOP - QTY: (2)

GEN 2 CADDY HOOP - SUPPORT TUBE - QTY: (2)

BOSS - 1 1/2" X 2" - QTY: (4) RESERVOIR TAB - QTY: (8)

BRAKELINE TAB - QTY: (1)

TAB - GEN 2 CADDY SHOCK HOOP - QTY: (8)

GEN 2 CADDY HOOP UPRIGHT - DRIVER SIDE FRONT W/ NOTCH - QTY: (1)

GEN 2 CADDY HOOP UPRIGHT - PASSENGER SIDE REAR - QTY: (1)

GEN 2 CADDY HOOP UPRIGHT - DRIVER SIDE REAR - QTY: (1)

GEN 2 CADDY HOOP UPRIGHT - PASSENGER SIDE FRONT - QTY: (1)

GEN 2 CADDY HOOP UPRIGHT - CROSS SHAFT PLANE - QTY: (2)

GEN 2 CADDY HOOP - FRAME OVERLAY PLATE - QTY: (2)

GEN 2 CADDY HOOP - UPRIGHT GUSSET W/ HOLE - QTY: (2)

GRADE 8 HARDWARE

Please contact us for any replacement parts.
